| Name: | Copper Foil Winding Machine | Function: | Winding Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Machine Color: | As Requested | Warranty Period: | 12 Months |
| Winding Speed: | 0 ~ 24 Rpm | Winding Power: | 11kw |
| High Light: | Automatic Reactor Copper Foil Winding Machine,Iron Core Copper Foil Winding Machine,Clamping Iron Core Foil Winder |
||
Clamping Iron Core Foil Winder Automatic Reactor Copper Foil Winding Machine
Quick details of copper foil winding machine BRJ800-2-2
Description of copper foil winding machine BRJ800-2-2
Copper foil winding machine BRJ800-2-2 is one kind of iron core clamping type conductor foil winder equipment. This kind of foil winding machine is mainly used to wind reactor coils and other similar products. The copper foil winding machine is provided with two servo motors to drive two ends, which guarantees two chucks have the same torque and two driving heads to wind synchronously. The copper foil winding machine can wind one or two layers of copper conductor foil or aluminium conductor foil and one or two layers of insulation paper at the same time. The copper foil winding machine features high torque, high automation and easy operation etc.
Technical parameters of copper foil winding machine BRJ800-2-2
Typical standard specifications of copper foil winding machine BRJ800-2-2 are shown below and the copper foil winding machine can also be manufactured as requested.
| Foil width: | 250 ~ 800mm |
| Max. Finished Coil OD.: | Ø850mm |
| Al Foil Thickness: | 0.3 ~ 3.0 mm |
| Cu Foil Thickness: | 0.2 ~ 2.0 mm |
| Foil Decoiler Number: | 2 sets |
| Foil Decoiler Diameter: | Ø 480 ~ 520mm |
| Max. Coil Weight: | 1,000KG |
| Motor Power: | 11KW |
| Winding Speed: | 0 ~ 24 rpm |
| Welding System: | TIG |
| Insulation Decoiler Number: | 2 sets |
| Edge Alignment System: | Photoelectric sensing |
| Control System: | PLC |
| User interface: | 10 inches touch screen |
| Counting Range: | 0 ~ 9999.9 |

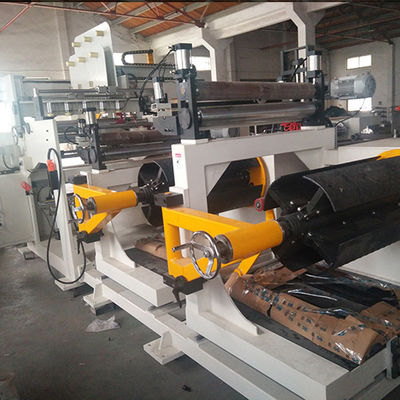

Fig 1: Copper foil winding machine BRJ800-2-2's front view
Fig 2: Copper foil winding machine BRJ800-2-2's back view
