| Name: | Transformer Core Cutting Machine | Usage: | Cutting Silicon Steel Strip |
|---|---|---|---|
| Strip Width: | 60 - 600mm | Strip Thickness: | 0.23 - 0.35mm |
| Feature: | Step Lap, Punching, Cutting | Warranty: | 12 Months |
| Power: | 18kw | Strip Length: | 350 ~ 9999.9mm |
| Highlight: | Length Line Transformer Core Cutting Machine,Step Lap Transformer Core Cutting Machine |
||
Step Lap Silicon Steel Strip Cut To Length Line Transformer Core Cutting Machine
Description of transformer core cutting machine HJX600-LLB
Automatic transformer core cutting machine HJX600-LLB is mainly used to cut the silicon steel strip to make transformer core’s legs and yokes. The model of transformer core cutting machine HJX600-LLB can cut the strip with maximum width 600mm. The transformer core cutting machine is with two cutting and two punching functions and can be used to cut and punch silicon steel strip to make fully inclined seam, half inclined seam and straight seam transformer iron core laminating sheet. The transformer core cutting machine is provided with servo motors to drive its actions, such as cutting, punching and feeding the silicon steel strip. The transformer core cutting machine features high precision, high automation and so on.
Quick details of transformer core cutting machine HJX600-LLB
Technical parameters of transformer core cutting machine HJX600-LLB
Typical standard specifications of transformer core cutting machine HJX600-LLB are shown below and the transformer core cutting machine can also be manufactured as requested.
| Strip Width Tolerance: | ≤±0.1mm |
| Strip Burr Length: | ≤0.03mm |
| Strip S Degree Tolerance: | single direction less than 0.1mm in 1000mm |
| Strip Wave Degree: | ≤15mm/1000mm( span more than 1000mm, height less than 15mm) |
| Strip Thickness: | 0.23～0.35mm |
| Strip Width: | 60～600mm |
| Strip Length: | 350～9999mm |
| Hole Punched Dia. | Φ 10mm～24mm |
| Hole Position: | can be bidirectional offset along the center line |
| V-notch Punching Eccentricity | ±30mm |
| Feeding Strip Speed: | 0～200m/min |
| Power: | 18Kw |

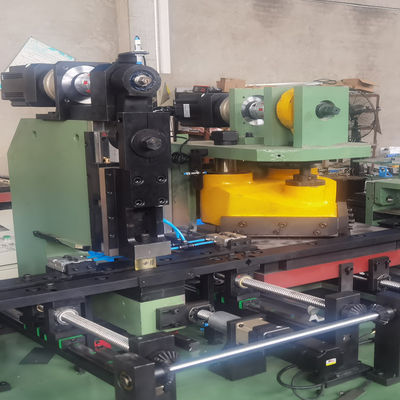

Fig 1: Transformer core cutting machine HJX600-LLB's full view
Fig 2: Transformer core cutting machine HJX600-LLB's side view
