| Product Name: | Copper Foil Winding Machine | Max. Foil Width: | 300mm |
|---|---|---|---|
| Rotating Speed: | 0 ~ 35 Rpm | Foil Thickness: | 0.2 ~ 3.0mm |
| Power: | 5.5KW | Power Supply: | AC 3-phase 380V 50Hz |
| Machine Color: | As Requested | Warranty: | 12 Months |
| Highlight: | Transformer Winder Copper Foil Winding Machine,Low Voltage Copper Foil Winding Machine,LV automatic transformer coil winding machine |
||
Transformer Winder Cold Pressure Welding Low Voltage Copper Foil Winding Machine
Description of copper foil winding machine BRJ300
Copper foil winding machine BRJ300 is one kind of professional winding equipment for winding conductor foil. The foil winding machine can be used to wind one layer of foil and one or two layers of insulation paper. The foil can be copper or aluminium foil with maximum width 300mm. With the cold pressure welding unit, the foil winding machine can weld different conductor together, that is to say, the machine can weld not only copper foil and copper bus bar or aluminium foil and aluminium bus bar, but also copper foil and aluminium bus bar or aluminium foil and copper bus bar together. The foil winding machine is provided with one foil decoiler, which is suitable for placing the conductor foil with inner diameter 500mm and maximum outer diameter 1000mm.
Main components of copper foil winding machine BRJ300
1. Main frame
2. Foil decoilers
3. Foil feeder
4. Pressing roller
5. Main winding unit
6. PLC based control system
7. Pneumatic system
8. Cold welding
Technical parameters of copper foil winding machine BRJ300
Typical standard specifications of BRJ300 are shown below and the copper foil winding machine can also be manufactured as requested.
| Foil width: | 100 ～ 300mm |
| Finished Coil Shape: | Oval, round and rectangular |
| Conductor Material: | Copper or Aluminum foil |
| Al Foil Thickness: | 0.3 ~ 3.0 mm |
| Cu Foil Thickness: | 0.2 ~ 2.0 mm |
| Foil Decoiler Number: | 1 sete |
| Foil Decoiler Expanding Range: | Ø400 ~ 520mm |
| Max Coil Weight: | 750 KG |
| Tension Mode: | Pneumatic |
| Adjusting Speed Mode: | Stepless adjustable |
| Rotating Speed: | 0 ~ 35 rpm |
| Insulation Decoiler Number: | 2 pc |
| Insulation Decoiler Shaft: | Expandable (pneumatic open/close action) |
| Control system: | PLC |
| Touch Screen: | 10inch (254mm) |
| Counting Range: | 0 ~ 9999.9 |

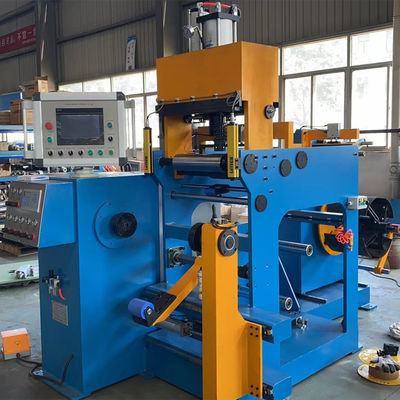

Fig 1: Copper foil winding machine BRJ300-2's front view
Fig 2: Copper foil winding machine BRJ300-2's cold pressure welding unit
