| Machine Name: | Core Cutting Machines | Cutting Mode: | Step Lap |
|---|---|---|---|
| Cutting Thickness: | 0.23 ~ 0.35mm | Cutting Width: | 40 ~ 400mm |
| Cutting Speed: | 0 ~ 120m/min | Warranty Period: | 12 Months |
| Cutting Burring: | Less Than 0.02mm | Motor Power: | 15kw |
| Highlight: | Silicon Steel Core Cutting Machine,Step Lap Core Cutting Machine,Transformer Core Cutting Machine |
||
Transformer Core Cutting Machine Step Lap Silicon Steel Cut To Length Line
Introduction of transformer core cutting machine HJX400-LLB
Transformer core cutting machine, also called cut to length line, is a special equipment, which is mainly used to cut silicon steel strip to make transformer core’s legs and yokes. The cut to length line can cut the silicon steel strip with maximum width 400mm. The thickness of the strip can be from 0.23mm to 0.35mm. With PLC control system, the cut to length line can cut the strip precisely. The cut to length line features easy operation and so on.
Main components of transformer core cutting machine HJX400-LLB
Technical parameters of transformer core cutting machine HJX400-LLB
Typical standard specifications of HJX400-LLB are shown below, however, the transformer core cutting machine can also be manufactured as requested.
| Two-end coil dereeler capacity | 1000kg/end |
| Supply coil ID | Φ500mm |
| Maximum supply coil OD | Φ1200mm |
| Cutting heads | 45+ ,45- , and triangle |
| Cutting thickness | 0.23 ~ 0.35 mm |
| Cutting width | 40 ~ 400 mm |
| Cutting length | 350 ~ 9999 mm |
| Punch diameters | Φ10mm, Φ14mm and Φ22mm, interchangeable |
| Maximum feeding speed | 120 m/min |
| Cutting angle accuracy | ±0.05° |
| Cutting length accuracy | ±0.10 mm |
| Cutting burring | ≤0.02 mm |
| Installation capacity | 15 kw |

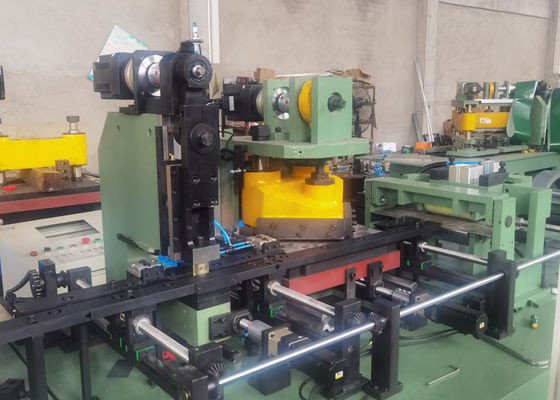

Fig 1:Cut to length line HJX400-LLB's side view
Fig 2: Cut to length line HJX400-LLB's coil dereeler
