| Product Name: | Transformer Core Cutting Machine | Function: | Cutting Silicon Steel Strip |
|---|---|---|---|
| Strip Width: | 60 - 600mm | Strip Thickness: | 0.23 - 0.35mm |
| Feature: | Step Lap, Punching, Cutting | Warranty Period: | 12 Months |
| Power: | 18kw | Strip Length: | 350 ~ 9999.9mm |
| Highlight: | Adjusted Transformer Core Cutting Machine,Step Lap Transformer Core Cutting Machine,Servo Transformer Core Cutting |
||
Transformer Core Cutting Machine Silicon Steel Cutter Making Core Legs
Description of transformer core cutting machine HJX600-LLB
Transformer core cutting machine HJX600-LLB is a professional cutter. This cutting machine is mainly used to cut the silicon steel strip to make transformer core’s legs and yokes. Transformer core cutting machine HJX600-LLB can cut the strip with maximum width 600mm and the cutting length can be adjusted. The transformer core cutting machine is with two cutting and two punching functions. The transformer core cutting machine is provided with servo motors to drive its actions, such as cutting, punching and feeding the silicon steel strip, which guarantees the actions’ precision. With PLC control system and HMI, the transformer core cutting machine features high precision, high automation, easy operation and so on.
Quick details of transformer core cutting machine HJX600-LLB
Technical parameters of transformer core cutting machine HJX600-LLB
Typical standard specifications of transformer core cutting machine HJX600-LLB are shown below and the transformer core cutting machine can also be manufactured as requested.
| Strip Width Tolerance: | ≤±0.1mm |
| Strip Burr Length: | ≤0.03mm |
| Strip S Degree Tolerance: | single direction less than 0.1mm in 1000mm |
| Strip Wave Degree: | ≤15mm/1000mm( span more than 1000mm, height less than 15mm) |
| Strip Thickness: | 0.23～ 0.35mm |
| Strip Width: | 60～600mm |
| Strip Length: | 350～9999mm |
| Hole Punched Dia. | Φ 10mm～24mm |
| Hole Position: | can be bidirectional offset along the center line |
| V-notch Punching Eccentricity | ±30mm |
| Feeding Strip Speed: | 0～200m/min |
| Power: | 18Kw |

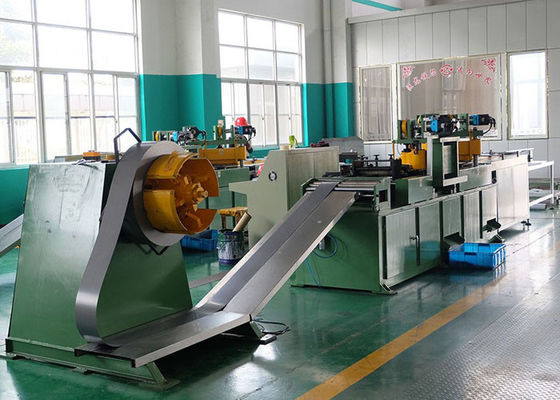

Fig 1: Transformer core cutting machine HJX600-LLB's full view
Fig 2: Transformer core cutting machine HJX600-LLB's side view
