Product Details:
Payment & Shipping Terms:
|
| Product Name: | Transformer Core Cutting Machine | Cutting Width: | 40 ~ 300mm |
|---|---|---|---|
| Cutting Thickness: | 0.23 ~ 0.35mm | Cutting Length: | 350 ~ 9999mm |
| Feeding Speed: | 120m Per Minute | Power: | 9kw |
| Machine Color: | As Requested | Warranty Period: | 12 Months |
| Highlight: | Silicon Steel Transformer Core Cutting Machine,Two Cutting Transformer Core Cutting Machine,One Punching Transformer Core Cutting Machine |
||
Silicon Steel Cutter Two Cutting One Punching Transformer Core Cutting Machine
Description of transformer core cutting machine HJX300
Transformer core cutting machine HJX300 is a special cutter equipment, which is mainly used to cut silicon steel to make transformer core’s legs and other similar products. The model of transformer core cutting machine can cut the silicon steel with maximum width 300mm. With HMI and PLC control system, the transformer core cutting machine features high automation, high precision, and easy operation etc.
Main parameters of transformer core cutting machine HJX300
The standard specifications of transformer core cutting machine HJX300 is shown below and the core cutting machine can also be manufactured as requested.
| Cut material | Silicon steel |
| Silicon steel thickness | 0.23 ~ 0.35mm |
| Silicon steel width | 40 ~ 300mm |
| Cutting length | 350 ~ 9999mm |
| Feeding speed | 0 ~ 120 m/min |
| Cutting angle tolerance | ±0.025° |
| Cutting length tolerance | ±0.10mm |
| Cutting burring | ≤0.02mm |
| Total power | 9kw |

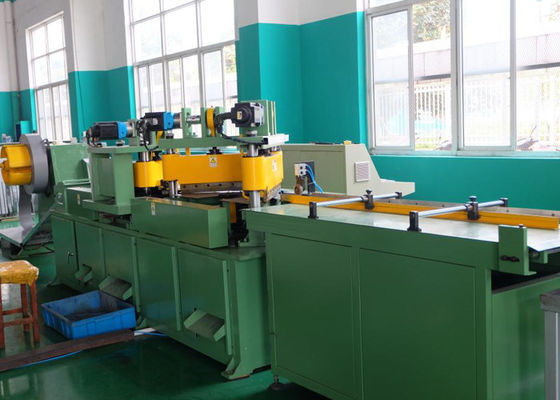

Fig 1: Transformer core cutting machine HJX300's full view
Fig 2: Transformer core cutting machine HJX300's side view
