Automatic Conductor Film Sheet Winder Copper Foil Winding Machine
Description of foil winding machine BRJ300-2
Copper foil winding machine BRJ300-2 is a special conductor foil film sheet winder equipment. The foil winding machine can wind both copper foils and aluminium foils and the wound foil coils can be used to make cast resin transformers or other similar products. With a cold pressure welding unit, the copper foil winding machine can weld foil with busbar together. The copper foil winding machine is provided with two sets of foil decoilers and two sets of insulation decoilers, which make the foil winding machine wind one or two layers of foils and wind one or two layers of insulation paper at the same time. With PLC and HMI, the copper foil winding machine features slow starting, smooth running, precise action and so on.
Main components of copper foil winding machine BRJ300-2
1. Main steel welded frame
2. Two foil decoilers
3. Two foil feeder
4. Pressing roller
5. Winding unit
6. PLC based control system
7. Pneumatic system
8. Cold pressure welding unit
Technical parameters of copper foil winding machine BRJ300-2
Typical standard specifications of copper foil winding machine BRJ300-2 are shown below, however, the copper foil winding machine can also be manufactured as requested.
|
Foil width: |
100 ~ 300mm |
|
Finished Coil Shape: |
Oval, circle and rectangular |
|
Conductor Foil Material: |
Copper or Aluminum foil |
|
Al Foil Thickness: |
0.3 ~ 3.0 mm |
|
Cu Foil Thickness: |
0.2 ~ 2.0 mm |
|
Foil Decoiler: |
2 pcs |
|
Foil Decoiler Length: |
350 mm |
|
Foil Decoiler Diameter Range: |
Ø480 ~ 520mm |
|
Maximum Coil Weight: |
750 KG |
|
Pressing Roller: |
2 set |
|
Adjusting Speed Mode: |
Stepless adjustable |
|
Rotating Speed: |
0 ~ 35 rpm |
|
Insulation Decoiler Number: |
2 pcs |
|
Insulation Decoiler: |
350mm |
|
Insulation Decoiler Shaft: |
Expandable (pneumatic open/close action) |
|
Programming Type: |
PLC |
|
Touch Screen: |
10inch (254mm) |
|
Counting Range: |
0 ~ 9999.9 |

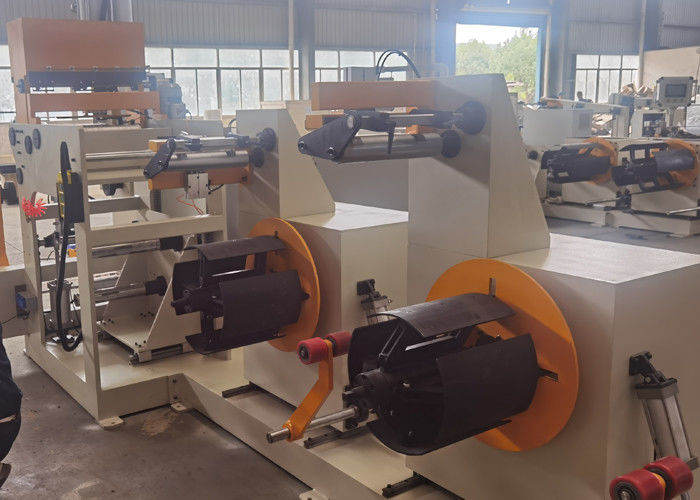

Fig 1: Copper foil winding machine BRJ300-2's front view
Fig 2: Copper foil winding machine BRJ300-2's cold pressure welding unit
