Two Punching Two Cutting Step Lap Transformer Core Cutting Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Transformer Core Cutting Machine | Function: | Step Lap, Punching, Cutting |
|---|---|---|---|
| Cutting Width: | 60 - 600mm | Cutting Thickness: | 0.23 - 0.35mm |
| Warranty Period: | 12 Months | Motor Power: | 18kw |
| Cuttin Length: | 350 ~ 9999.9mm | ||
| Highlight: | Step Lap Transformer Core Cutting Machine,Two Punching Transformer Core Cutting Machine,Two Cutting Transformer Core Cutting Machine |
||
Two Punching Two Cutting Step Lap Transformer Core Cutting Machine
Description of transformer core cutting machine HJX600-LLB
Transformer core cutting machine HJX600-LLB is mainly used to cut the silicon steel strip and the cut strip can be used to make transformer core’s legs or yokes. The kind of cut to length line can cut the strip with maximum width 600mm. The transformer core cutting machine is with functions of two cutting and two punching as requested. The core cutting machine can also be used to cut and punch silicon steel strip to make fully inclined seam, half inclined seam and straight seam transformer iron core laminating sheet. All actions of the transformer core cutting machine, such as cutting, punching and feeding the silicon steel strip, are driven by servo motors, which guarantees the precision of the actions. With PLC and HMI, the transformer core cutting machine features high precision, high automation, easy operation and so on.
Quick details of transformer core cutting machine HJX600-LLB
1. Expansible decoiler
2. Feeding strip device
3. Servo motor system
4. Punching device
5. Shearing device
6. Outlet platform
7. Depiler and sorting device
8. Catching material device
9. Width adjusting system
10. Pneumatic driven unit
Technical parameters of transformer core cutting machine HJX600-LLB
Typical standard specifications of transformer core cutting machine HJX600-LLB are shown below and the transformer core cutting machine can also be manufactured as requested.
|
Strip Width Tolerance: |
≤±0.1mm |
|
Strip Burr Length: |
≤0.03mm |
|
Strip S Degree Tolerance: |
single direction less than 0.1mm in 1000mm |
|
Strip Wave Degree: |
≤15mm/1000mm( span more than 1000mm, height less than 15mm) |
|
Strip Thickness: |
0.23～ 0.35mm |
|
Strip Width: |
60～600mm |
|
Strip Length: |
350～9999mm |
|
Hole Punched Dia. |
Φ 10mm～24mm |
|
Hole Position: |
can be bidirectional offset along the center line |
|
V-notch Punching Eccentricity |
±30mm |
|
Feeding Strip Speed: |
0～200m/min |
|
Power: |
18Kw |

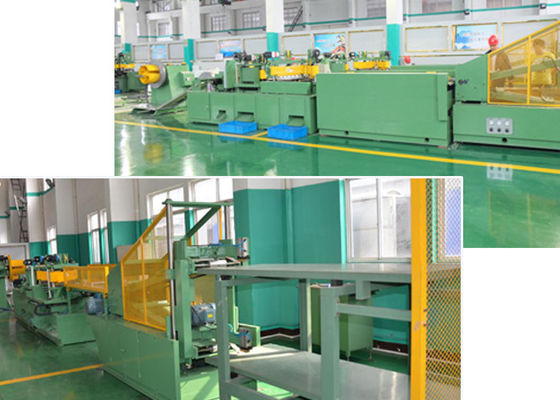

Fig 1: Transformer core cutting machine HJX600-LLB's full view
Fig 2: Transformer core cutting machine HJX600-LLB's side view
