Automatic Reactor Coiling Machine Copper Foil Winding Machine
Quick details of copper foil winding machine BRJ800-2-2
l Two chucks
l Foil material ID 500mm
l Foil material OD 1000mm, maximum
l Maximum winding speed 24rpm
l Winding power 11kw
l TIG welding
Description of copper foil winding machine BRJ800-2-2
Copper foil winding machine BRJ800-2-2 is a special reactor foil coil winder equipment, which is mainly used to wind reactor coils and other similar products. The copper foil winding machine is provided with two chucks and the two chucks are driven by two servo motors, which guarantees the same torque on two winding heads. With two foil decoilers and two insulation decoilers, the copper foil winding machine can wind one or two layers of foil conductor and one or two layers of insulation paper at the same time. With PLC and HMI, the copper foil winding machine is with high automation and easy operation etc.
Technical parameters of copper foil winding machine BRJ800-2-2
Typical standard specifications of copper foil winding machine BRJ800-2-2 are shown below and the copper foil winding machine can also be manufactured as requested.
|
Foil width: |
250 ~ 800mm |
|
Max. Finished Coil OD.: |
Ø850mm |
|
Finished Coil Shape: |
Round, Rectangular and Oval |
|
Conductor Foil Material: |
Copper or Aluminum foil |
|
Al Foil Thickness: |
0.3 ~ 3.0 mm |
|
Cu Foil Thickness: |
0.2 ~ 2.0 mm |
|
Foil Decoiler Number: |
2 sets |
|
Foil Decoiler Diameter: |
Ø 480 ~ 520mm |
|
Max. Coil Weight: |
1,000KG |
|
Motor Power: |
11KW |
|
Winding Speed: |
0 ~ 24 rpm |
|
Welding System: |
TIG |
|
Insulation Decoiler Number: |
2 sets |
|
Edge Alignment System: |
Photoelectric sensing |
|
Control System: |
PLC |
|
User interface: |
10 inches touch screen |
|
Counting Range: |
0 ~ 9999.9 |

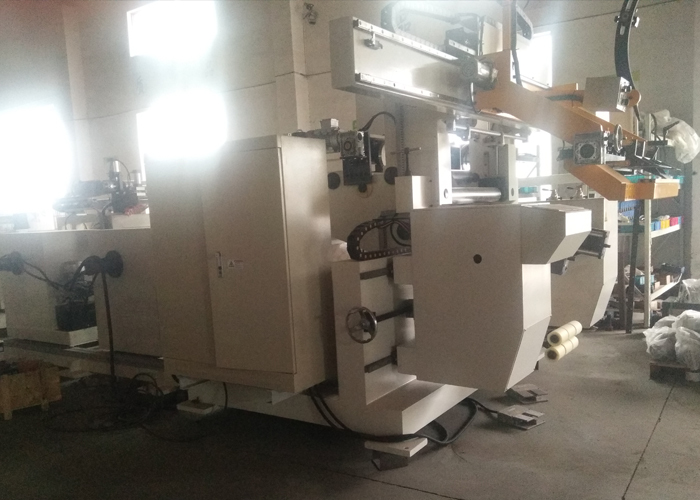

Fig 1: Copper foil winding machine BRJ800-2-2's front view
Fig 2: Copper foil winding machine BRJ800-2-2's back view
