Stepping Cut To Length Line Transformer Core Cutting Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Transformer Core Cutting Machine | Cutting Function: | Stepping |
|---|---|---|---|
| Strip Thickness: | 0.23 ~ 0.35mm | Strip Width: | 40 ~ 300mm |
| Feeding Speed: | 120m/min | Warranty: | 12 Months |
| Total Power: | 13 Kw | Color: | As Requested |
| Highlight: | Stepping Cut to Length Machine,Stepping Transformer Core Cutting Machine |
||
Stepping Cut to Length Line Transformer Core Cutting Machine
Description of transformer core cutting machine HJX300-LLB
Transformer core cutting machine HJX300-LLB is a special cutting equipment, which is mainly used for cutting silicon steel strip to make transformer core’s legs or yokes and other similar products. With stepping function, this kind of transformer core cutting machine can cut the strip with decreasing length. The transformer core cutting machine’s control system is based on PLC, which guarantees the cutting machine is with high automation. The transformer core cutting machine features easy operation and so on.
Quick details of transformer core cutting machine HJX300-LLB
l Cutting thickness 0.23 ~ 0.35mm
l Cutting width 40 ~ 300mm
l Sheet moving speed 120m/min
l Motor power 13kw
l Less than 0.02mm cutting burring
l 12 months warranty
Main parameters of transformer core cutting machine HJX300-LLB
The standard specifications of transformer core cutting machine HJX300-LLB is shown below and the cutting machine can also be manufactured as requested.
|
Sheet thickness |
0.23 ~ 0.35 mm |
|
Sheet width |
40 ~ 300 mm |
|
Cutting length |
350 ~ 9999 mm |
|
Feeding speed |
120 m/min |
|
Cutting angle accuracy |
±0.025° |
|
Cutting length accuracy |
±0.1 mm |
|
Cutting burring |
≤0.02 mm |
|
Installation capacity |
13 kw |

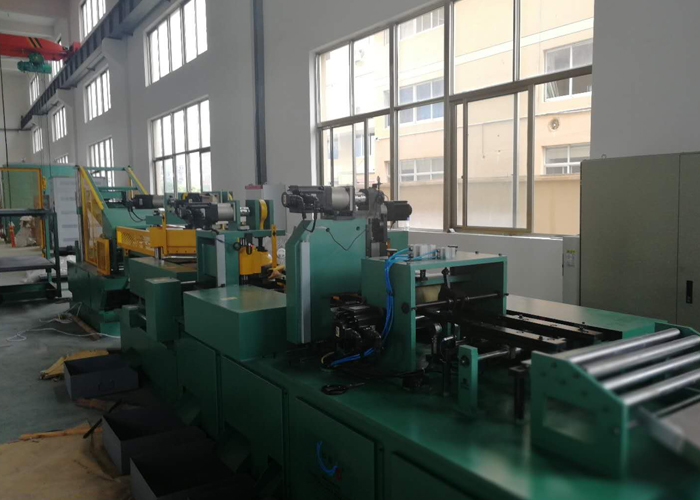

Fig 1: Transformer core cutting machine HJX300-LLB's full view
Fig 2: Transformer core cutting machine HJX300-LLB's side view
