Introduction of transformer core cutting machine HJX400-LLB

Transformer core cutting machine HJX400-LLB is a professional silicon steel cutting equipment. The core cutting machine can cut silicon steel strip to make transformer core’s legs and yokes. With control system based on PLC and HMI, the transformer core cutting machine. The core cutting machine is provided with PLC control system and HMI, which makes the cutting machine be operated easily. The core cutting machine is with stepping function for cutting step lap core’s legs and yokes. It is very easy to operate the core cutting machine.

Main components of transformer core cutting machine HJX400-LLB

1. Hydraulic decoiler

2. Slopping feed device

3. Punch unit

4. Shearing unit

5. Outlet platform

6. Width adjusting system

7. Pneumatic system

8. Electric control system

Technical parameters of transformer core cutting machine HJX400-LLB

Typical standard specifications of HJX400-LLB are shown below and the transformer core cutting machine can also be manufactured as requested.

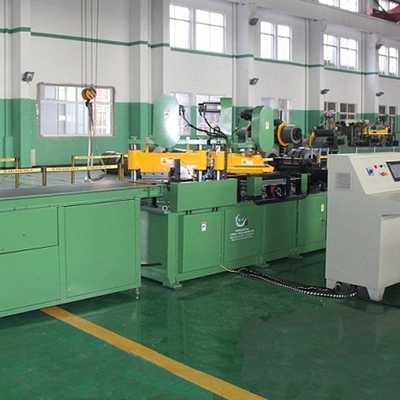

Fig 1:Cut to length line HJX400-LLB's side view

Fig 2: Cut to length line HJX400-LLB's coil dereeler
