Lap Core Stacking Table with 500mm Platform Stroke 40mm/s Lifting Speed and 90° Rotating Angle for Amorphous Transformer Core Assembly

Lap Core Stacking Table Assembly Amorphous Transformer Core

Description of transformer core stacking table ZPT-5T

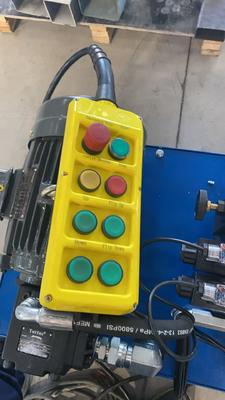

Transformer core stacking table ZPT-5T is a professional stacking equipment for stacking amorphous transformer cores and other similar products. This kind of amorphous transformer core stacking table is provided with hydraulic station for providing enough force to lift and tile the stacked core. The transformer core stacking table is provided iwth a hand held controller for controlling the stacking table. It is very easy to operate the core stacking table.

Quick details of transformer core stacking table ZPT-5T

1. Working height  850mm

2. Hydraulic station 1 piece

3. Linear guide

4. Maximum loading capacity 5000kg

5. Motor power 3kw

6. Hydraulic pressure 21MPa

Main Parameters of transformer core stacking table ZPT-5T

Typical standard specifications of transformer core stacking table ZPT-5T are shown below and the stacking table can also be manufactured as requested.

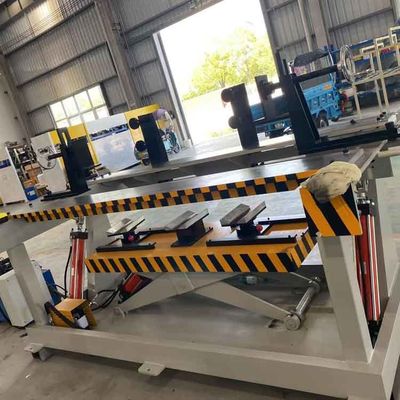

Fig 1: Transformer core stacking table ZPT-5T's full view


Fig 2: Transformer core stacking table ZPT​-5T's tilting
