Amorphous Transformer Core Machine Stacking Table Hydraulic Driving For Tilting
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Iron Core Stacking Table
Usage: Stacking Iron Core
Table Height: 850mm
Capacity: 3000 Kgs
Motor Power: 2.2 Kw
Color: Optional
Warranty: 12 Months
Highlight:

Amorphous transformer core machine

,

Hydraulic Driving core stacking table

,

Tilting transformer core machine

Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPT-3T
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

Amorphous Transformer Core Stacking Table Hydraulic Driving for Tilting

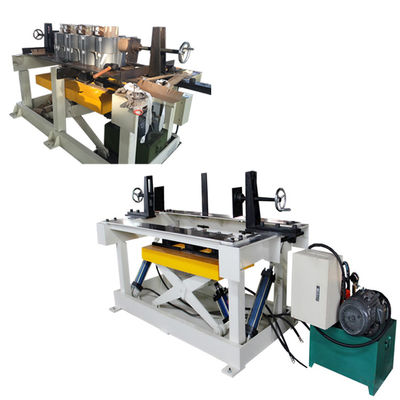

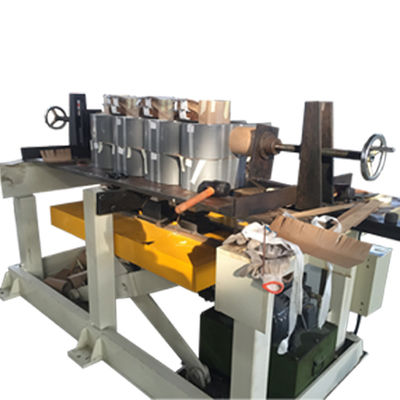

Description of transformer core stacking table ZPT-3T



Automatic amorphous transformer core stacking table ZPT-3T is a professional equipment to assemble amorphous transformer iron core. The transformer core stacking table can be used to place three same sized coils. When operating, placing coils on the lifting blocks firstly, then making the iron core going through the coils. After assembling the cores, the platform can tilt the cores for taking away the assembled coils easily. Moreover, the lifting blocks can be for different sized coils. It is very easy to operate with a hand-held control plate.





Main components of the transformer core stacking table ZPT-3T



1. Main frame

2. Hydraulic station

3. Linear guide

4. Lifting block





Main parameters of transformer core stacking table ZPT-3T



Typical standard specifications of ZPT-3T are shown below, however these can be easily modified as requested.

No. Item ZPT-3T
1 Table height 850mm
2 Suitable Product Size

L:700-1600mm

W:360-700mm

H:400-900mm

3 Lifting Platform Capacity 3000Kg
4 Lifting Platform Stroke 300mm
5 Lifting Speed 40mm/s
6 Motor Power 2.2Kw
8 Total Weight 1500Kg
8 Applicable Transformer capacity 30KVA~2000KVA
9 Rotating Angle 90°
10 Hydraulic Pressure 21MPa
