Automatic Copper Foil Winding Machine with Cold Pressure Welding, Two Servo Motors, and 22KW Winding Power

Automatic Cold Pressure Welding Automatic Foil Winding Machine

Description of foil winding machine BRJ1300-2

Automatic foil winding machine BRJ1300-2 is a professional foil sheet winder equipment. The foil winding machine is with two servo motors to drive two winding heads, which can assure the two winding heads wind synchronously. With a cold pressure welding unit, the foil winding machine can weld foil with busbar together. With two sets of foil decoilers, the foil winding machine can wind one or two layers of foil. With PLC and HMI, the foil winding machine features slow starting, smooth running, precise action and so on.

Main components of copper foil winding machine BRJ1300-2

1. Main steel welded frame

2. Two foil decoilers

3. Two foil feeder

4. Pressing roller

5. Winding unit

6. PLC based control system

7. Pneumatic system

8. Cold pressure welding unit

Technical parameters of copper foil winding machine BRJ1300-2

Typical standard specifications of copper foil winding machine BRJ300-2 are shown below, however, the copper foil winding machine can also be manufactured as requested.

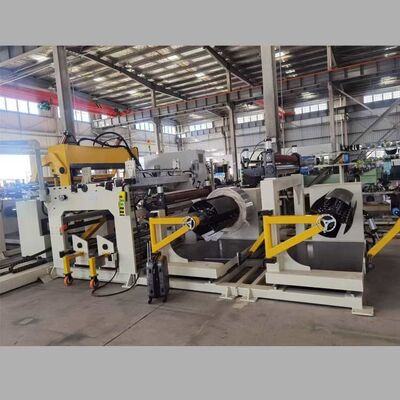

Fig 1: Copper foil winding machine BRJ1300-2's front view

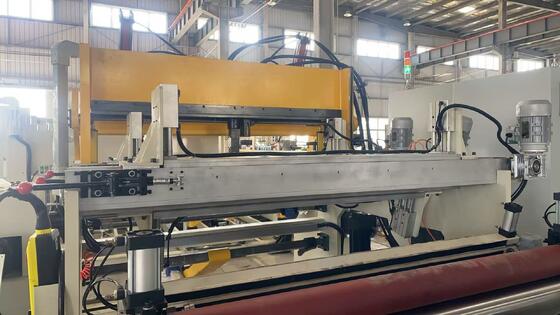

Fig 2: Copper foil winding machine BRJ1300-2's grinding unit
