Silicon Steel Cut To Length Line Step Lap Transformer Core Cutting Machine

1 set
MOQ
negotiable
Price
Silicon Steel Cut To Length Line Step Lap Transformer Core Cutting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Core Cutting Machines
Cutting Mode: Step Lap Cutting
Cutting Thickness: 0.23 ~ 0.35mm
Cutting Width: 40 ~ 400mm
Feeding Speed: 0 ~ 120m/min
Warranty: 12 Months
Cutting Burring: Less Than 0.02mm
Total Power: 15kw
Highlight:

silicon steel transformer core cutting machine

,

step lap transformer core cutter

,

cut to length transformer core machine
Basic Infomation
Place of Origin: China
Brand Name: STT
Model Number: HJX400-LLB
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T,L/C
Supply Ability: 100 sets per year
Product Description
Silicon Steel Cut To Length Line Step Lap Transformer Core Cutting Machine
Professional Silicon Steel Cutting Equipment
The HJX400-LLB transformer core cutting machine is a specialized cutter equipment, which is designed for cutting silicon steel strips to create transformer core legs and yokes. Featuring a PLC-based control system with HMI interface, this equipment offers easy operation and precise cutting capabilities. The machine includes stepping functionality for producing step lap cores, making it ideal for transformer manufacturing applications.
Main Components
  • Hydraulic decoiler
  • Slopping feed device
  • Punch unit
  • Shearing unit
  • Outlet platform
  • Width adjusting system
  • Pneumatic system
  • Electric control system
Technical Specifications
Standard specifications for the HJX400-LLB transformer core cutting machine are detailed below. Custom configurations are available upon request.
Two-end coil dereeler capacity 1000kg/end
Supply coil ID Φ500mm
Maximum supply coil OD Φ1200mm
Cutting heads 45+, 45-, and triangle
Cutting thickness 0.23 ~ 0.35 mm
Cutting width 40 ~ 400 mm
Cutting length 350 ~ 9999 mm
Punch diameters Φ10mm, Φ14mm and Φ22mm, interchangeable
Maximum feeding speed 120 m/min
Cutting angle accuracy ±0.05°
Cutting length accuracy ±0.10 mm
Cutting burring ≤0.02 mm
Installation capacity 15 kw
Equipment Overview

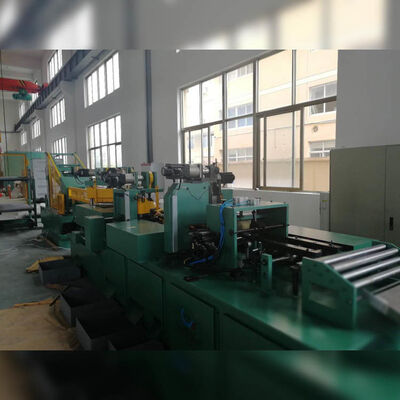

Silicon Steel Cut To Length Line Step Lap Transformer Core Cutting Machine 0
Fig 1: Cut to length line HJX400-LLB's side view


Silicon Steel Cut To Length Line Step Lap Transformer Core Cutting Machine 1
Fig 2: Cut to length line HJX400-LLB's coil dereeler


Silicon Steel Cut To Length Line Step Lap Transformer Core Cutting Machine 2


Silicon Steel Cut To Length Line Step Lap Transformer Core Cutting Machine 3


Silicon Steel Cut To Length Line Step Lap Transformer Core Cutting Machine 4


Silicon Steel Cut To Length Line Step Lap Transformer Core Cutting Machine 5


Silicon Steel Cut To Length Line Step Lap Transformer Core Cutting Machine 6


Silicon Steel Cut To Length Line Step Lap Transformer Core Cutting Machine 7


Silicon Steel Cut To Length Line Step Lap Transformer Core Cutting Machine 8
Tag:

0.35mm silicon steel cutting machine

40mm small core cutting machine

120m/min Transformer Core Cutting Machine
