Two Foil Decoilers Copper Foil Winding Machine with PLC Control System for 1600mm Max Foil Width

Two Foil Decoiler Equipped Copper Foil Winding Machine for Industrial Providing Stable Copper Foil Feed and Accurate Winding

Introduction of copper foil winding machine BRJ1600-2

Copper foil winding machine BRJ1600-2 is one kind of heavy duty foil sheet winder for winding transformer coils and other similar products. The foil winding machine can be used to wind foil sheet with maximum width 1600mm. With two foil decoilers and two insulation paper decoilers, the copper foil winding machine can be used to wind one or two layers of foil and one or two layers of insulation paper. With TIG welding unit, the copper foil winding machine can weld foil and bus bar together. With PLC control system and HMI, the copper foil winding machine features slow start, smooth running, easy operation and so on.

Main components of copper foil winding machine BRJ1600-2

1. Main frame, strong structure

2. Winding unit, 30kw motor driving

3. Insulation decoiler, with high tension

4. Cleaning system, pneumatic driving

5. Cutting system, pneumatic driving

6. Foil deburring system

7. Edge alignment system, photoelectric sensing

8. Automatic welding unit, TIG

9. Electronic control system

10. Pneumatic system

Technical Parameters of copper foil winding machine BRJ1600-2

Typical standard specifications of copper foil winding machine BRJ1600-2 are shown below and the copper foil winding machine can also be manufactured as requested.

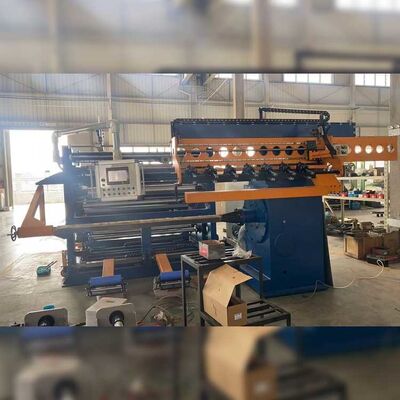

Fig 1: Copper foil winding machine BRJ1600-2's front view

Fig 2: Copper foil winding machine BRJ1600-2's TIG welding unit
