Name: HJX400-LLB Step Lap Transformer Core Cutting Machine with 0.02mm Cutting Burring and 120m/min Feeding Speed
Brand: Suzhou Tronsing Technology Co., Ltd
SKU: HJX400-LLB
Price: 26,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Core Cutting Machines

Cutting Mode: Step Lap Cutting

Cutting Thickness: 0.23 ~ 0.35mm

Cutting Width: 40 ~ 400mm

Feeding Speed: 0 ~ 120m/min

Warranty Period: 12 Months

Cutting Burring: Less Than 0.02mm

Total Power: 15kw

Highlight:

silicon steel transformer core cutting machine

step lap transformer core cutter

HJX400-LLB transformer core cutting line

Basic Infomation

Place of Origin: China

Brand Name: STT

Certification: CE

Model Number: HJX400-LLB

Payment & Shipping Terms

Packaging Details: seaworthy packing

Delivery Time: 90 days

Payment Terms: T/T,L/C

Supply Ability: 100 sets per year

Gallery

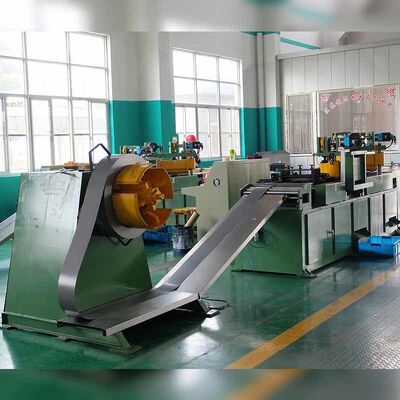

HJX400-LLB Step Lap Transformer Core Cutting Machine with 0.02mm Cutting Burring and 120m/min Feeding Speed

Product Description

HJX400-LLB Silicon Steel Cut To Length Line Step Lap Transformer Core Cutting Machine

Product Introduction

The HJX400-LLB step lap transformer core cutting machine is a professional and high-precision processing equipment dedicated to silicon steel sheet cutting. It is specially designed for cutting silicon steel strips to fabricate core legs and yokes of transformer cores.

Equipped with a mature PLC control system and HMI human-machine interface, the machine features intuitive operation and intelligent control. It supports step lap cutting technology, enabling precise processing of step-lapped core legs and yokes. With stable performance and simple operation, it meets the high-precision production requirements of transformer cores.

Main Components

Hydraulic Decoiler
Inclined Feeding Device
Punching Unit
Shearing Unit
Outlet Platform
Width Adjusting System
Pneumatic System
Electrical Control System

Technical Parameters

The following are the standard technical specifications of the HJX400-LLB transformer core cutting machine. Customized production is available to meet diverse customer processing requirements.

Parameter	Specification
Double-end Coil Uncoiling Capacity	1000kg per end
Raw Coil Inner Diameter	Φ500mm
Max Raw Coil Outer Diameter	Φ1200mm
Cutting Types	+45°, -45° and triangular cutting
Applicable Cutting Thickness	0.23 ~ 0.35 mm
Cutting Width Range	40 ~ 400 mm
Cutting Length Range	350 ~ 9999 mm
Punching Diameters	Φ10mm, Φ14mm, Φ22mm (interchangeable dies)
Max Feeding Speed	120 m/min
Cutting Angle Accuracy	±0.05°
Cutting Length Accuracy	±0.10 mm
Cutting Burr Height	≤0.02 mm
Installed Power	15 kw
