Description of transformer coil winding machine ZPX250

Automatic transformer coil winding machine ZPX250 is a special wire winder, which is mainly used to wind different sizes of wire to make wire coils. These coils can be used in transformers or other similar products. The transformer coil winding machine is driven by a 2.2kw motor and the wire guide is driven by a 0.75kw servo motor. The transformer coil winding machine is provided with PLC, which can make the machine run automatically after inputting some parameters. It is very easy to operate the transformer coil winding machine.

Quick detail of transformer coil winding machine ZPX250

• Maximum winding width 250mm
• Center height 900mm
• Winding power 2.2kw
• Maximum winding speed 200rpm
• Machine’s color can be customized
• Warranty period 12 months

Technical parameters of transformer coil winding machine ZPX250

Typical standard specifications of transformer coil winding machine ZPX250 are shown below and the transformer coil winding machine can also be manufactured as requested.

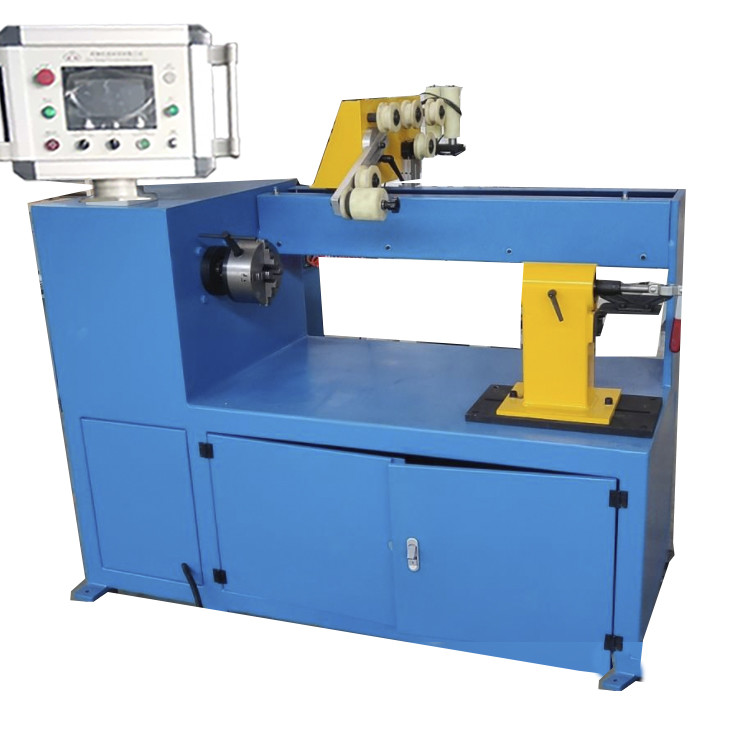

Fig 1: Automatic coil winding machine ZPX250's full view


Fig 2: Automatic coil winding machine ZPX250's wire guide
