Automatic Three Wire Guides 200rpm Transformer Coil Winding Machine Oil Type

1 set
MOQ
negotiable
Price
Automatic Three Wire Guides 200rpm Transformer Coil Winding Machine Oil Type
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Transformer Coil Winding Machine
Wire Type: Flat Wire Or Round Wire
Control System: PLC
Winding Speed: 0- 200rpm
Wire Guide: 3 Pcs
Warranty: 12 Months
Highlight:

200rpm Transformer Coil Winding Machine

,

200rpm copper wire coil winding machine

,

4kw Transformer Coil Winding Machine
Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX150-3
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

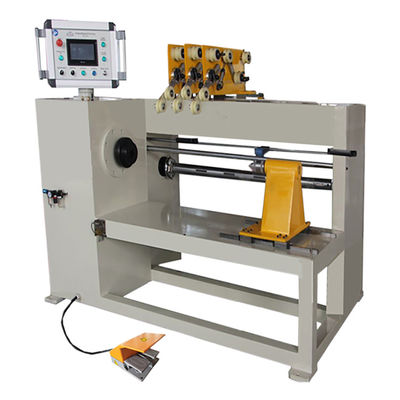

Automatic Three Wire Guides PLC Control Oil Type Transformer Coil Winding Machine





Quick Detail:



  • Winding copper or aluminium wire
  • Three wire guides
  • Winding width 150mm
  • Three coils at one time
  • Winding power 4kw
  • Customized color



Description



Automatic Oil Type Transformer Coil Winding Machine With Three Wire Guides ZPX150-3 is a special equipment for winding transformer coils and other similar products. The transformer coil winding machine is provided with three wire guides for winding three same size coil simultaneously, which significantly improve production effectiveness. The machine can wind not only three coils with maximum length 150mm per coil, but also one coil with maximum length about 500mm.





Technical Parameters



Typical standard specifications of ZPX150-3 are shown below, however these can be easily modified as requested.

Center Height: 900 mm
Square Shaft Size: 40x40x700 mm
Round Wire Diameter: 0.3～4.0 mm
Max. Flat Wire Size: 3x10 mm
Max. Finished Coil OD.: 400 mm
Max. Each Coil Length: 150 mm
Winding Motor Power: 4kw
Winding Speed: 0～200 rpm
Winding Speed Regulation: Variable frequency and stepless speed regulation
Control system: PLC
Spread Pitch: Min. step: 0.01 mm
Counting Mode: 5-digit counting,
Max. Turns Number Preset: 9999.9
