Product Details:
Payment & Shipping Terms:
|
| Name: | Automatic Reactor Coil Winding Machine | Application: | Winding Reactor Coil |
|---|---|---|---|
| Winding Motor: | 4.4kw | Winding Speed: | 1 - 160rpm |
| Wire Material: | Cu Or Al Wire | Wire Type: | Flat Or Round Wire |
| Color: | As Requested | Warranty: | 12 Months |
| High Light: | Programmable Automatic Coil Winding Machine,160rpm Automatic Coil Winding Machine,160rpm programmable winding machine |
||

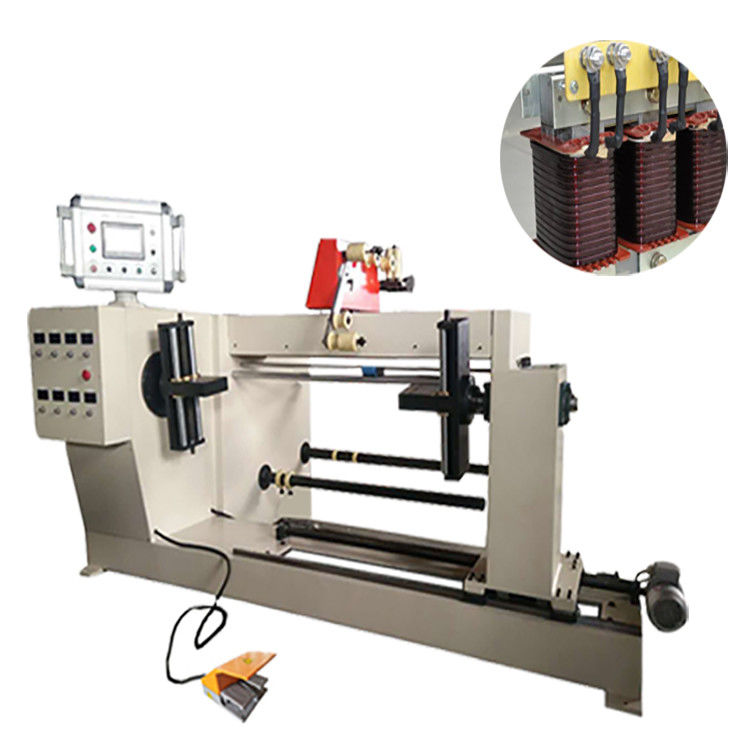

Programmable Automatic Coil Winding Machine Making Reactor Wire Winder
General Information of Automatic Coil Winding Machine
Programmable automatic coil winding machine making reactor wire winder ZPX800 is core clamping type winding machine. The kind of automatic coil winding machine is with two chucks and clamp the iron core when winding and the wire is wound on the core directly. The automatic coil winding machine is provided with a wire guide driven by a servo motor, which guarantees the excellent stop and start action. The control system based on PLC enables the automatic coil winding machine many different functions. Coloured touch screen makes the automatic coil winding machine being operated easily.
Main Features of Automatic Coil Winding Machine
Main Parameters of automatic coil winding machine
| Center Height: | 900mm |
| Shaft length: | 1100mm |
| Max. Winding Height: | 800mm |
| Motor Power: | 4.4Kw |
| Winding Speed: | 0-160 rpm |
| Speed Regulation: | Variable frequency and stepless speed regulation |
| Max. Flat Wire Size: | 5X12mm |
| Round Wire Diameter: | 0.3-4.0mm |
| Max. Finished Coil OD.: | 800mm |
| Max. Loading Capacity: | 1000kg |
| Min spread pitch | 0.01mm |
| Counting Mode: | 5-digit counting |
| Max. Numbers of Turns Preset: | 9999.9 |
| Counting Turn Range: | 0 - 9999.9 |
