Product Details:
Payment & Shipping Terms:
|
| Name: | Transformer Coil Winding Machine | Application: | Winding Wire Coil |
|---|---|---|---|
| Wire: | Aluminium Or Copper Wire | Wire Type: | Round Wire Or Flat Wire |
| Round Wire: | ∅0.3 - ∅5.0mm | Flat Wire Size: | Maximum 5x12mm |
| Color: | Customizable | Warranty: | 12 Months |
| High Light: | Oil Immersed Automatic Coil Winding Machine,5x12mm Automatic Coil Winding Machine,5.0mm auto coil winding machine |
||

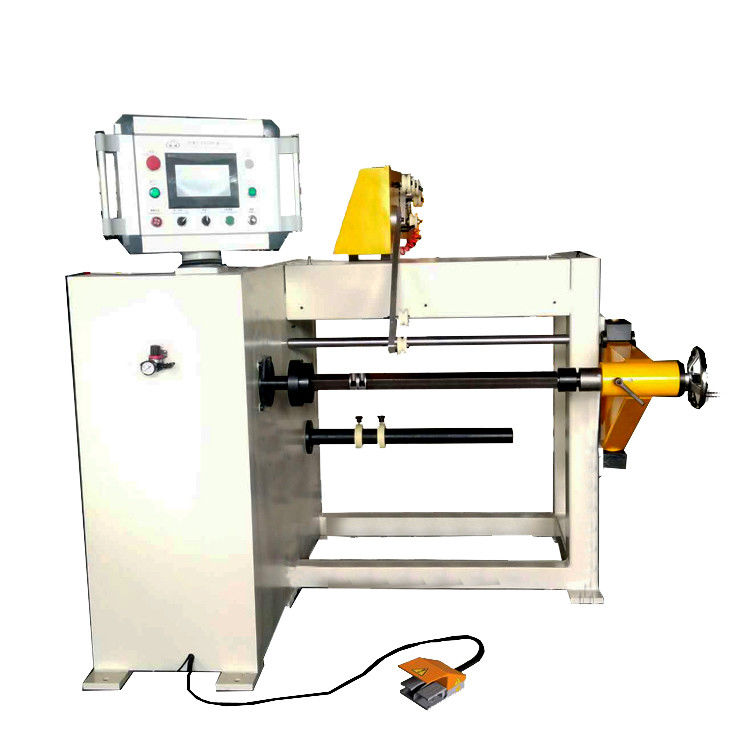

Oil Immersed Transformer Making Equipment Automatic Coil Winding Machine
Description of automatic coil winding machine ZPX400
Automatic coil winding machine ZPX400 is a special machine for winding oil immersed transformer coil and other similar products. The automatic coil winding machine can be used to wind not only aluminium or copper round wire but also aluminium or copper flat wire. The control system of the automatic coil winding machine is based on PLC, which can make the machine have a different function. With a touch screen, the parameters of the automatic coil winding machine can be set for winding different kinds of coil. The automatic coil winding machine features high automation, easy operation and so on.
Quick details of automatic coil winding machine:
Main Parameters of automatic coil winding machine:
| Center height: | 900mm |
| Square Shaft Size: | 40x40x700mm |
| Maximum Winding Width: | 400mm |
| Servo Motor Power: | 0.75kw |
| Rotating Speed: | 0 - 200 rpm |
| Motor Power: | 3kw |
| Regulating Speed: | stepless speed regulation |
| Flat Wire Size: | Maximum 5X12mm |
| Round Wire Diameter: | ∅0.3- ∅5.0mm |
| Rotating OD.: | 800mm max |
| Maximum Capacity: | 500kg |
| Minimum Spread Pitch: | 0.01mm |
| Counting: | 5-digit counting |
| Maximum Turns Preset: | 9999.9 |
| Counting Range: | 0 - 9999.9 |
