| Product Name: | Tranformer Foil Winding Machine | Function: | Winding Dry Type Transformer Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Winding Speed: | 0 ~ 16rpm | Motor Power: | 30kw |
| Color: | Optional | Warranty: | 12 Months |
| Highlight: | Cast Resin Transformer Foil Winder,Transformer Foil Winding Machine Industrial,1600mm Width Transformer Foil Winding Machine |
||
Industrial Equipment Cast Resin Transformer Foil Winding Machine With 1600mm Width Foil
Introduction of transformer foil winding machine BRJ1600-2
Cast resin transformer foil winding machine BRJ1600-2 is a special equipment for winding foil coils to make cast resin transformer or other similar products. Both copper foil and aluminium foil can be wound by the transformer foil winding machine. With a motor with 30kw power, the transformer foil wining machine can wind one or two layers of foil and one or two layers of insulation paper. TIG welding unit is adopted for welding foil and bus bar together. The transformer foil winding machine is provided with PLC control system, which make the transformer foil winding machine be operated easily.
Features of transformer foil winding machine BRJ1600-2
Main Parameters of transformer foil winding machine BRJ1600-2
The following is the standard specifications of transformer foil winding machine BRJ1600-2, however, the transformer foil winding machine can also be manufactured as requested.
| Axial Length (foil width): | 350 ~ 1,600mm |
| Finished Coil OD.: | ≤1,000mm |
| AL Foil Thickness: | 0.3 ~ 3.0 mm |
| Cu Foil Thickness: | 0.2 ~ 2.0 mm |
| Conductor Material OD.: | ≤1,000mm |
| Conductor Material ID.: | 500mm |
| Foil Decoiler Number: | 2 pcs |
| Insulation Decoiler Number: | 2 pcs |
| Winding Power: | 30kw |
| Winding Speed: | 0 ~ 16rpm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric disc shear |
| Foil deburring System: | Pneumatic control |
| Cleaning Foil Device: | Pneumatic control |
| Edge Alignment System: | Photoelectric sensing |
| Counting Turns Range: | 0 ~ 9999.9 |

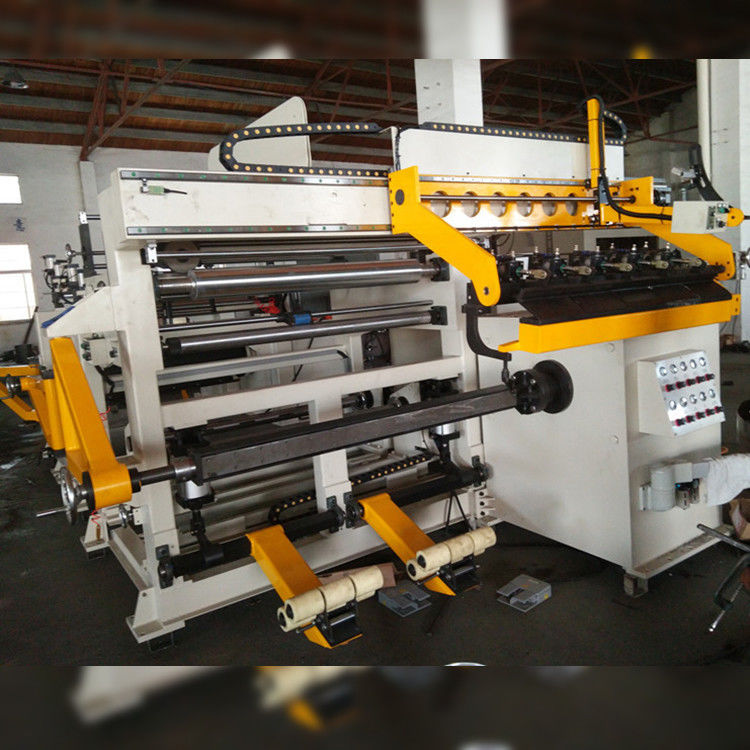

Fig 1: Transformer foil winding machine BRJ1600-2's front view
Fig 2: Transformer foil winding machine BRJ1600-2's back view
