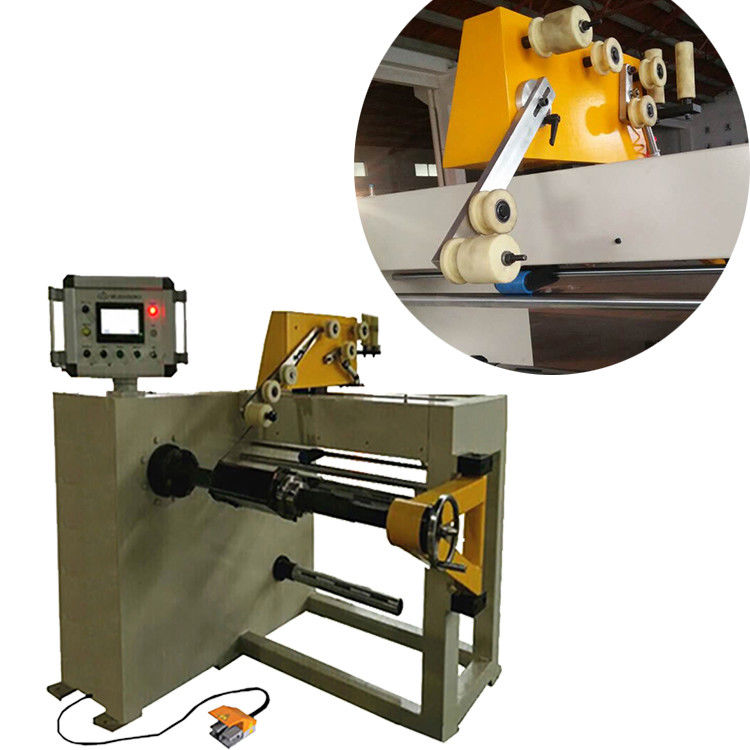

Automatic Copper and Aluminium Wire Coil Winding Machine Making Transformer

Automatic Copper and Aluminium Wire Coil Winding Machine Making Transformer

Automatic Copper and Aluminium Wire Coil Winding Machine Making Transformer
Automatic Copper and Aluminium Wire Coil Winding Machine Making Transformer

Large Image :  Automatic Copper and Aluminium Wire Coil Winding Machine Making Transformer Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZPX800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Coil Winding Machine Motor Power: 4kw
Servo Motor Power: 0.75kw Rotating Speed: 0- 160rpm
Wire Material: Cu Or Al Wire Conductor Type: Flat Or Round Wire
Counter Range: 0~9999.9 Wire Guide: 1 Pc

Automatic Copper and Aluminium Wire Coil Winding Machine Making Transformer





Description of coil winding machine ZPX800



Automatic coil winding machine ZPX800 is for winding different specifications of wire coils and these coils can be used in transformers and other similar products. The coil winding machine is provided with automatic wire laying technology. A 750w servo motor are used to drive the wire guide to move right and left. With PLC, the machine can wind different kinds of coil if presetting a proper parameters.







Main features of coil winding machine



  • Slow starting, when the machine starts, the winding speed is very slow for safety
  • Smooth running, strong structure guarantees the machine smoothly running
  • Full function, strong programmable function make the machine many function
  • High automation
  • Easy operation
  • Customized color



Technical parameters of coil winding machine



Typical standard specifications of coil winding machine ZPX800 are shown below, however these can be easily modified as requested.



Center Height: 900mm
Shaft Length: 1150mm
Maximum Coil Width: 800mm
Motor Power: 4Kw
Winding Speed: 0 ~ 160 rpm
Speed Regulation: Variable frequency and stepless speed regulation
Max. Flat Wire Size: 5X12mm
Round Wire Diameter: 0.3-5.0mm
Max. Finished Coil OD.: 800mm
Max. Loading Capacity: 700kg
Spread Pitch: Min. 0.01mm
Counting Mode: 5-digit counting
Counting Range: 0 - 9999.9
