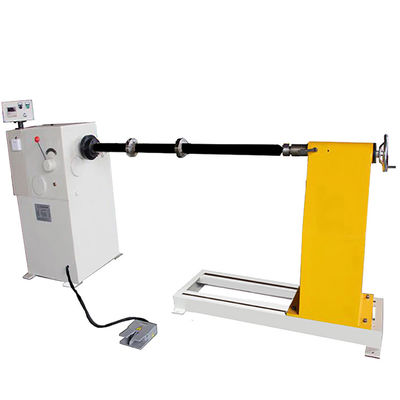

Semi Automatic Transformer HV Coil Winding Machine Split Type

Semi Automatic Transformer HV Coil Winding Machine Split Type

Semi Automatic Transformer HV Coil Winding Machine Split Type
Semi Automatic Transformer HV Coil Winding Machine Split Type

Large Image :  Semi Automatic Transformer HV Coil Winding Machine Split Type Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: GDY-1T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Simple Coil Winding Machine Application: Winding Transformer Coil
Shaft Heigth: 1000mm Shaft Size: 40x40x1200mm
Tailstock: Split Type Color: As Requested
Counter: Digital Winding Speed: 0 ~ 200rpm
High Light:

STT transformer hv coil winding machine

,

200rpm lv winding machine

,

200rpm transformer hv coil winding machine

Semi Automatic HV and LV Oil Immersed Transformer Coil Winding Machine





General Information of transformer coil winding machine GDY-1T



Semi automatic transformer coil winding machine GDY-1T is a simple winding machine for copper wire or aluminium wire coils. These coils can be sued in oil immersed transformer or other similar products. The number of turns can be preset, after finishing winding, the machine can stop automatically. With a digital shown counter, the number of turns can be seen when winding. The coil winding machine features simple structure, slow starting, smooth running, reverse counting and so on.





Main components of coil winding machine GDY-1T



1.Main steel welded frame

2.Gearbox with several sets of gears

3.Tailstock with liver center

4.Electric control cabinet

5.Foot pedal





Main Parameters



Typical standard specifications of coil winding machine GDY-1T are shown below, however these can be easily modified as requested.



Center Height from Floor: 1000mm
Square Shaft Size: 40x40x1200mm
Flange Square Hole Size: 40*40mm
Rotating Speed: 0 ~ 200rpm
Speed Gear: 2 pcs
Max. Finished Coil Height: 1000mm
Counting Range: 0-9999.9
Max. Loading Capacity: 1000KG
Motor Power: 3KW
Machine colour: customized
Machine Dimension(L*W*H): 2800*700*1400mm
