Cast Resin Transformer Foil Winding Machine Two Layers Film Strip

Cast Resin Transformer Foil Winding Machine Two Layers Film Strip

Cast Resin Transformer Foil Winding Machine Two Layers Film Strip
Cast Resin Transformer Foil Winding Machine Two Layers Film Strip

Large Image :  Cast Resin Transformer Foil Winding Machine Two Layers Film Strip Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ600-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Foil Winding Machine Usage: Winding Foil
Foil Width: 150 - 600mm Foil Conductor: Copper And Aluminium Foil
Winding Power: 11kw Rotating Speed: Maximum 26rpm
Color: As Requested Warranty: 12 Months
High Light:

Cast Resin Transformer Foil Winding Machine

,

Two Layers Film Strip Winding Machine

,

Two Layers Transformer Foil Winding Machine

Two Layers Film Strip Winder Cast Resin Transformer Foil Winding Machine





Description of transformer foil winding machine BRJ600-2



Cast resin transformer foil winding machine BRJ600-2 is mainly used to wind film strip for making transformer coil. The transformer foil winding machine can wind two layers of film strip with maximum width 600mm. TIG welding unit of the transformer foil winding machine is for welding foil and bus bar together. The transformer foil winding machine is suitable for winding not only copper foil but also aluminium foil. The transformer foil winding machine features easy operating, strong pulling force and so on.





Quick details of transformer foil winding machine BRJ600-2

  • Foil width 150 - 600mm
  • TIG welding unit including welding machine and cooler
  • Cu foil thickness 0.2 - 2.0mm
  • Al foil thickness 0.3 - 3.0mm
  • Two foil decoilers
  • Two insulation decoilers
  • Winding motor power 11kw
  • Maximum winding speed 26rpm

Main parameters of transformer foil winding machine BRJ600-2

Coil Shape: oval, circle and rectangular
Foil Material OD.: 1,000mm
Foil Material ID.: 500mm
Foil Decoiler Number: 2 pcs
Foil Decoiler Length: 650mm
Foil Decoiler Diameter Range: 400-520mm
Winding Power: 11KW
Winding Shaft Size: 80×80×950 mm
Winding Speed: 0 - 26 Rpm
Insulation Decoiler: 2 pcs
Insulation Material OD.: ≤400mm
Insulation Material ID.: 76mm
Insulation Paper Width: 650mm
End-fill Strip Feeder: 6 pcs
Edge Alignment System: Photoelectric sensing automatic rectifying deviation
User Interface: 10inch (254mm) touch screen
Counting Turns Range: 0 - 9999.9



Cast Resin Transformer Foil Winding Machine Two Layers Film Strip 0

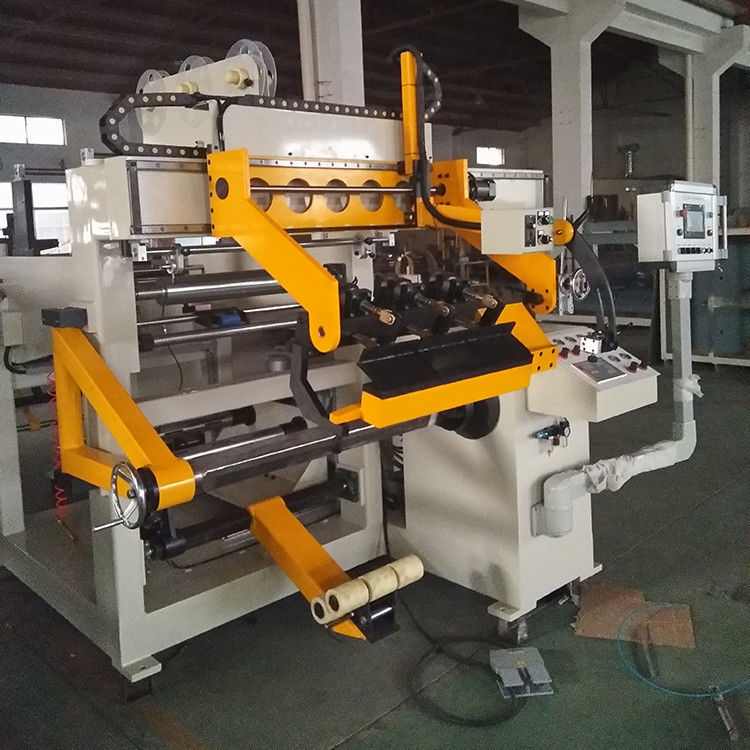

Fig 1: Transformer foil winding machine BRJ600-2's front view



Cast Resin Transformer Foil Winding Machine Two Layers Film Strip 1

Fig 2: Transformer foil winding machine BRJ600-2's back view



Cast Resin Transformer Foil Winding Machine Two Layers Film Strip 2Cast Resin Transformer Foil Winding Machine Two Layers Film Strip 3Cast Resin Transformer Foil Winding Machine Two Layers Film Strip 4Cast Resin Transformer Foil Winding Machine Two Layers Film Strip 5Cast Resin Transformer Foil Winding Machine Two Layers Film Strip 6Cast Resin Transformer Foil Winding Machine Two Layers Film Strip 7

Cast Resin Transformer Foil Winding Machine Two Layers Film Strip 8Cast Resin Transformer Foil Winding Machine Two Layers Film Strip 9Cast Resin Transformer Foil Winding Machine Two Layers Film Strip 10
