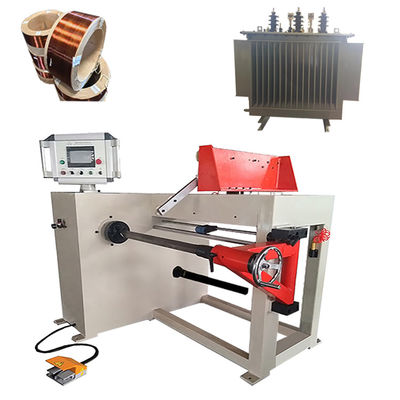

Automatic Oil Type Transformer Coil Winding Machine Making Wire Coil

Automatic Oil Type Transformer Coil Winding Machine Making Wire Coil

Automatic Oil Type Transformer Coil Winding Machine Making Wire Coil
Automatic Oil Type Transformer Coil Winding Machine Making Wire Coil

Large Image :  Automatic Oil Type Transformer Coil Winding Machine Making Wire Coil Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZPX600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Transformer Coil Winding Machine Application: Winding Wire Coil
Winding Width: 0-600mm Center Height: 900mm
Motor Power: 4kw Winding Speed: 0- 200rpm
Wire Guide: 1 Pc Warranty: One Year
High Light:

Wire Transformer Coil Winder

,

Oil Type Transformer Coil Winder

,

Automatic Transformer Coil Winder

Automatic Oil Type Transformer Coil Winding Machine Making Wire Coil





Introduction of transformer coil winding machine ZPX600



Transformer coil winding machine ZPX600 is one of coil winding machines, which is mainly used to wind copper or aluminium wire to make transformer coils and other similar products. The transformer coil winding machine can be used to wind not only round wires, but also flat wires. Moreover, one 4kw motor is severed as the main winding motor, which provides a enough torque to wind different kinds of wire. The transformer coil winding machine is provided with a foot pedal. The foot pedal can be used to run or stop the machine and to switch the rotating direction of the main mandrel. The winding speed can be adjusted with a potentiometer on the screen board of the transformer coil winding machine. With PLC control system, the machine can be operated easily.





Features of transformer coil winding machine ZPX600

  • programmable, to make the machine have rich functions
  • easy operation, the machine can wind the wire automatically
  • slow starting, the starting speed is very slow for safety
  • smooth running, during running, the machine is very stable
  • strong pulling force, 4kw motor provides big torque
  • high reliability, high quality provides high reliability
  • high accuracy, servo motor and PLC guarantee the high accuracy
  • full functions, with different program, the machine can achieve many functions



Main Parameters of transformer coil winding machine ZPX600



Typical standard specifications of transformer coil winding machine ZPX600 are shown below, however, these can be easily modified as requested.



Center Height of Winding Shaft: 900mm
Winding Shaft Size: 40x40x900mm
Maximum Winding Width: 600mm.
Winding Motor Power: 4kw
Maximum Winding Speed: 200 rpm
Speed Regulation: Variable frequency and stepless speed regulation
Maximum Flat Wire Size: 5X12mm
Round Wire Diameter: Φ0.3 - Φ5.0mm
Maximum Rotating Diameter: 600mm
Maximum Loading Capacity: 500kg
Spread Pitch: Min. 0.01mm
Counting Mode: 5-digit counting
Maximum Number of Turns Preset: 9999.9
Counting Range: 0 - 9999.9
