Split Type Transformer Coil Winding Machine Semi Automatic

Split Type Transformer Coil Winding Machine Semi Automatic

Split Type Transformer Coil Winding Machine Semi Automatic
Split Type Transformer Coil Winding Machine Semi Automatic

Large Image :  Split Type Transformer Coil Winding Machine Semi Automatic Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: GDY-2T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Coil Winding Machine Function: Winding Transformer Coil
Center Height: 1000mm Shaft Size: 40x40x1500mm
Tailstock: Split Type Color: As Requested
Counter: Digital Rotating Speed: 0 ~ 80rpm
High Light:

Split Type Transformer Coil Winding Machine

,

Semi Auto Transformer Coil Winding Machine

,

80rpm Transformer Coil Winding Machine

Factory Direct Selling Easy Operation Semi Automatic Transformer Coil Winding Machine





General information of transformer coil winding machine GDY-2T



Semi automatic transformer coil winding machine GDY-2T is one kind of professional wire winder, which can be used to wind copper flat and round wire or aluminium flat and round wire to make transformer core. The transformer coil winding machine is provided with a 3kw motor to drive the winding shaft to rotate. With a counter, the transformer coil winding machine can record the number of turns when winding and can save the number of turns even if the power is off suddenly. Moreover, the number of turns can be preset through the counter, when the transformer coil winding machine finishes winding the preset number of turns, it will stop running automatically. The foot pedal can be used to switch the rotation direction.





Main components of transformer coil winding machine GDY-2T



1. Main frame

2. Gearbox

3. Tailstock with liver center

4. Electric control cabinet

5. Foot pedal





Main parameters of transformer coil winding machine GDY-2T



Typical standard specifications of transformer coil winding machine GDY-2T are shown below, however, these can be easily modified as requested.

Center Height from Floor: 1000mm
Winding Shaft Size: 40x40x1500mm
Flange Square Hole Size: 40x40mm
Winding Speed: 0~80rpm
Speed Gear: 2 pcs
Maximum Winding Width: 1300mm
Counting Range: 0~9999.9
Maximum Weight Capacity: 2000KG
Winding Power: 5.5KW
Machine colour: customized
Machine Dimension(L*W*H): 2800x700x1400mm

Split Type Transformer Coil Winding Machine Semi Automatic 0

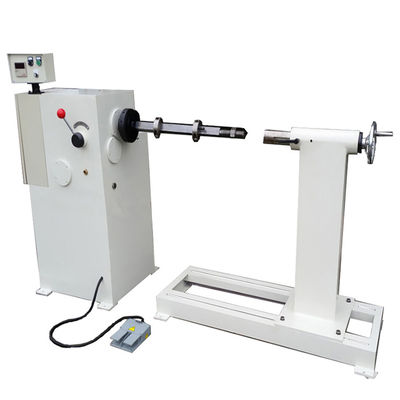

Fig 1: Semi automatic transformer coil winding machine's full view

Split Type Transformer Coil Winding Machine Semi Automatic 1

Fig 2:Semi automatic transformer coil winding machine's head

Split Type Transformer Coil Winding Machine Semi Automatic 2

Split Type Transformer Coil Winding Machine Semi Automatic 3

Split Type Transformer Coil Winding Machine Semi Automatic 4

Split Type Transformer Coil Winding Machine Semi Automatic 5

Split Type Transformer Coil Winding Machine Semi Automatic 6

Split Type Transformer Coil Winding Machine Semi Automatic 7

Split Type Transformer Coil Winding Machine Semi Automatic 8

Split Type Transformer Coil Winding Machine Semi Automatic 9
