Home ProductsCopper Foil Winding Machine

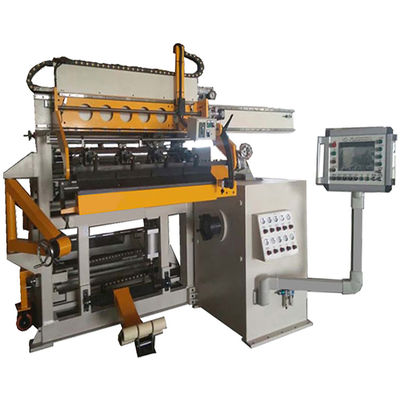

2 Layers Copper Foil Winding Machine Making Dry Type Transformer Coil

2 Layers Copper Foil Winding Machine Making Dry Type Transformer Coil

2 Layers Copper Foil Winding Machine Making Dry Type Transformer Coil
2 Layers Copper Foil Winding Machine Making Dry Type Transformer Coil

Large Image :  2 Layers Copper Foil Winding Machine Making Dry Type Transformer Coil Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ800-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Copper Foil Winding Machine Application: Winding Transformer Coil
Cu Foil Thickness: 0.2 - 2.0mm Al Foil Thickness: 0.3 - 3.0mm
Welding Mode: TIG Welding Speed: 0.8m/min
Deburring: Pneumatic Cleaning: Pneumatic
High Light:

Two Layers Copper Foil Winder

,

Dry Type Copper Foil Winding Machine

,

2 Layers Copper Foil Winding Machine

Two Layers Winder Copper Foil Winding Machine Making Dry Type Transformer Coil


Description of copper foil winding machine BRJ800-2

Copper foil winding machine BRJ800-2 is mainly used to wind different specifications of copper or aluminium foil to make coils for cast resin transformer. The copper foil winding machine is provided with two foil decoilers, which can make the machine wind one or two layers of foil. TIG welding unit is adopted on the copper foil winding machine for welding foil and bus bar together. With the touch screen, it is very easy to operate the copper foil winding machine. The control system of the copper foil winding machine is based on PLC, which make the machine have many automation function.


Quick details of copper foil winding machine BRJ800-2

  • Maximum foil width 800mm
  • Winding copper or aluminium foil
  • Foil conductor ID 500mm, OD 1000mm
  • TIG welding
  • Pressing roller
  • Machine’s color can be customized


Technical parameters of copper foil winding machine BRJ800-2

Typical standard specifications of copper foil winding machine BRJ800-2 are shown below, however these can be easily modified as requested.

Foil width:200 ~ 800mm
Max. OD. of Wound Coil:800mm
Wound Coil Shape:oval, circle and rectangular,etc.
Conductor Foil Material OD.:1,000mm
Conductor Foil Material ID.:500mm
Foil Decoiler Number:2 pcs
Foil Decoiler Length:850mm
Foil Decoiler Diameter:Adjustable range 400-520mm
Winding Mandrel Size:80×80×1150 mm
Welding Mode:TIG
Insulation Decoiler Number:2 pcs
Max. Insulation Material Width:850mm
Insulation Decoiler Shaft:Expandable (pneumatic open/close action)
End-fill Strip Feeder:6 pcs
Edge Alignment System:Photoelectric sensing
Control System:PLC
User Interface:10inch (254mm) touch screen
Counting Turns Range:0 - 9999.9

2 Layers Copper Foil Winding Machine Making Dry Type Transformer Coil 0
Fig 1: Copper foil winding machine's side view
2 Layers Copper Foil Winding Machine Making Dry Type Transformer Coil 1
Fig 2: Copper foil winding machine's back view
2 Layers Copper Foil Winding Machine Making Dry Type Transformer Coil 2
2 Layers Copper Foil Winding Machine Making Dry Type Transformer Coil 32 Layers Copper Foil Winding Machine Making Dry Type Transformer Coil 42 Layers Copper Foil Winding Machine Making Dry Type Transformer Coil 52 Layers Copper Foil Winding Machine Making Dry Type Transformer Coil 6
2 Layers Copper Foil Winding Machine Making Dry Type Transformer Coil 7
2 Layers Copper Foil Winding Machine Making Dry Type Transformer Coil 8
2 Layers Copper Foil Winding Machine Making Dry Type Transformer Coil 9
