| Machine Name: | Transformer Foil Winding Machine | Function: | Winding Dry Transformer Coil |
|---|---|---|---|
| Foil Width: | Maximum 600mm | Foil Conductor: | Copper And Aluminium Foil |
| Motor Power: | 11kw | Winding Speed: | Maximum 26rpm |
| Color: | As Requested | Warranty: | 12 Months |
| High Light: | Transformer Foil Winding Machine Dry Type,Transformer Foil Winding Machine 26rpm,600mm Transformer Foil Winding Machine |
||
Factory Selling Máquina de bobinado de láminas Dry Type Transformer Foil Winding Machine
1) Description of transformer foil winding machine BRJ600-2
Transformer foil winding machine BRJ600-2 is one of our automatic foil winding machine models. The transformer foil winding machine is suitable for winding copper or aluminium foil with maximum width 600mm and the wound foil coil can be used to manufacture 600KVA cast resin transformer. With TIG welding unit, the transformer foil winding machine can weld foil and bus bar together. The transformer foil winding machine features slow starting, smooth running, low noise and high automation. With 10 inches touch screen, it is very easy to operate the transformer foil winding machine.
2) Main components of transformer foil winding machine BRJ600-2
3) Main parameters of transformer foil winding machine BRJ600-2
| Coil Shape: | oval, circle and rectangular |
| Conductor Foil Material OD.: | Φ1,000mm, maximum |
| Conductor Foil Material ID.: | Φ500mm |
| Conductor Foil Decoiler: | 2 pcs |
| Conductor Decoiler Expanding Range: | Φ400mm ~ Φ520mm |
| Winding Power: | 11KW |
| Winding Shaft Size: | 80×80×950 mm |
| Winding Speed: | 0 ~ 26 Rpm |
| Insulation Decoiler: | 2 pcs |
| Insulation Material OD.: | Φ400mm, maximum |
| Insulation Material ID.: | Φ76mm |
| End-fill Strip Feeder: | 6 pcs |
| Edge Alignment System: | Photoelectric sensing |
| HMI: | color touch screen |
| Counting Turns Range: | 0 - 9999.9 |

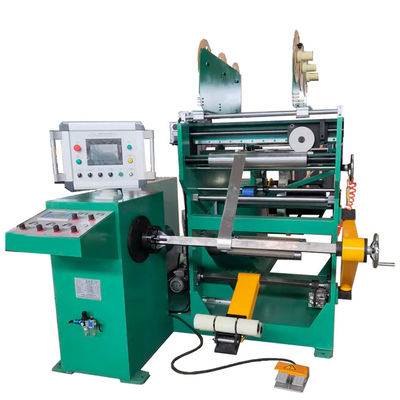

Fig 1: Transfomer foil winding machine BRJ600-2's front view
Fig 2: Transformer foil winding machine BRJ600-2's insulation dereelers
