Programmable Transformer Coil Winder 4kw Automatic

Programmable Transformer Coil Winder 4kw Automatic

Programmable Transformer Coil Winder 4kw Automatic
Programmable Transformer Coil Winder 4kw Automatic

Large Image :  Programmable Transformer Coil Winder 4kw Automatic Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZPX600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Coil Winding Machine Application: Winding Wire Coil
Winding Width: 0 ~ 600mm Center Height: 900mm
Motor Power: 4kw Winding Speed: 0 ~ 200rpm
Wire Guide: 1 Pc Warranty: One Year
High Light:

Programmable Transformer Coil Winder

,

4kw Transformer Coil Winder

,

Programmable Transformer Coil Winding Machine

Factory Direct Selling Máquina de bobinado Wire Winder Transformer Coil Winding Machine





Introduction of transformer coil winding machine ZPX600



Transformer coil winding machine ZPX600 is one kind of automatic wire winding machine for making transformer coil. The transformer coil winding machine can be used to winding round or flat wires and the conductor can be copper wire or aluminium wire. With 4kw motor as main winding motor, the transformer coil winding machine is with big torque to wind different sizes of wires. One wire guide driven by a 750w servo motor is adopted for laying wire and the servo motor guarantees the precision of laying wire. The user friendly interface of the touch screen makes the transformer coil winding machine easy to be operated. The foot pedal can be used to switch the rotating direction of the winding shaft. The potentiometer on the screen board is used to adjust the winding speed of the transformer coil winding.





Main features of transformer coil winding machine ZPX600

  • programmable
  • easy operation
  • slow starting
  • smooth running
  • strong pulling force
  • high reliability
  • high accuracy
  • full functions



Main parameters of transformer coil winding machine ZPX600



Winding Shaft Center Height From Floor: 900mm
Winding Shaft Size: 40x40x900mm
Max Winding Width: 600mm.
Winding Motor Power: 4kw
Max. Winding Speed: 200 rpm
Speed Regulation: stepless speed regulation
Max. Flat Wire Size: 5X12mm
Round Wire: Φ0.3 ~ Φ5.0mm
Max. Rotating Diameter: Φ600mm
Max. Loading Capacity: 500kg
Spread Pitch: Min. 0.01mm
Counting Mode: 5-digit counting
Max. Turns Preset: 9999.9
Counting Range: 0 - 9999.9



Programmable Transformer Coil Winder 4kw Automatic 0

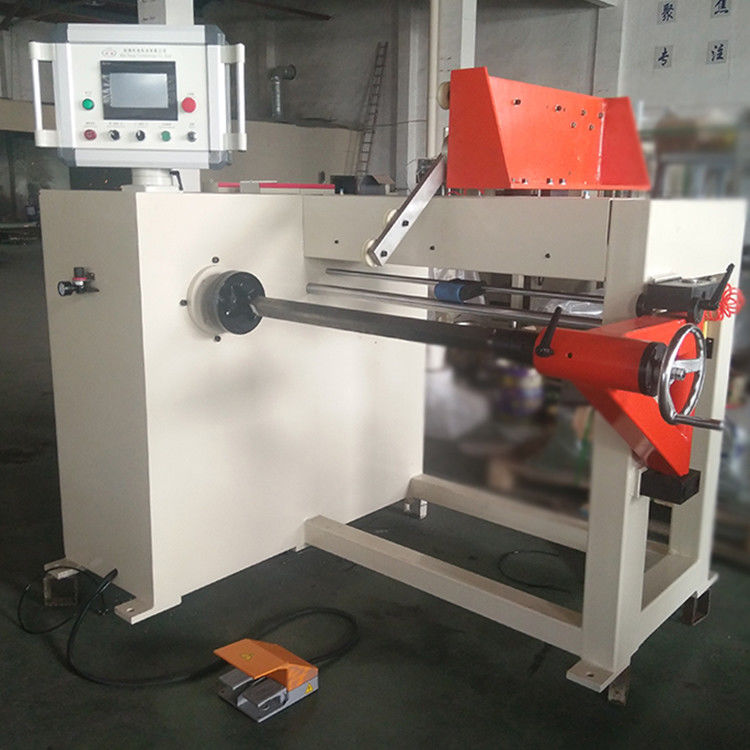

Fig 1: Transformer coil winding machine ZPX600's front view



Programmable Transformer Coil Winder 4kw Automatic 1

Fig 2: Transformer coil winding machine ZPX600's winding shaft



Programmable Transformer Coil Winder 4kw Automatic 2Programmable Transformer Coil Winder 4kw Automatic 3Programmable Transformer Coil Winder 4kw Automatic 4Programmable Transformer Coil Winder 4kw Automatic 5Programmable Transformer Coil Winder 4kw Automatic 6Programmable Transformer Coil Winder 4kw Automatic 7Programmable Transformer Coil Winder 4kw Automatic 8
