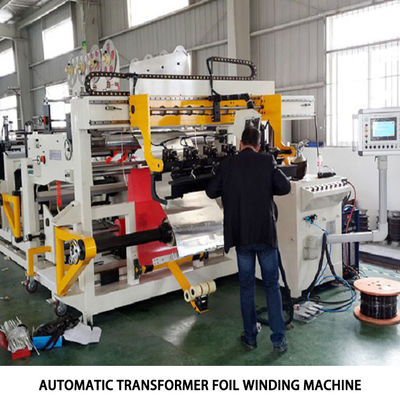

Automatic Copper Foil Winding Machine Making Dry Type Low Voltage Transformer

Automatic Copper Foil Winding Machine Making Dry Type Low Voltage Transformer

Automatic Copper Foil Winding Machine Making Dry Type Low Voltage Transformer
Automatic Copper Foil Winding Machine Making Dry Type Low Voltage Transformer

Large Image :  Automatic Copper Foil Winding Machine Making Dry Type Low Voltage Transformer Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: BRJ1400-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Copper Foil Winding Machine Usage: Winding Coil
Conductor: Cu / Al Strip Foil Decoiler: 2 Sets
Motor Power: 22kw Rotating Speed: 18 Rpm
Color: As Requested Warranty: 12 Months
High Light:

Automatic Copper Foil Winding Machine

,

Dry Type Transformer Winding Machine

,

18rpm Copper Foil Winding Machine

Automatic Copper Foil Winding Machine Making Dry Type Low Voltage Transformer





Description of copper foil winding machine BRJ1400-2



Dry type transformer copper foil winding machine BRJ1400-2 is one professional equipment for winding coils for cast resin transformer and other similar products. The kind of copper foil winding machine, i.e. Máquina de bobinado de láminas de aluminio, can handle one or two layers of copper film or aluminium foil with width from 300mm to 1400mm. The copper foil winding machine can also wind one or two layers of layer insulation paper along with foil. With automatic TIG welding unit, the foil winding macihne can weld the conductor foil with the bus bar together. Moreover, the copper foil winding machine can be customized as requested, such as the foil decoiler expanding range. Usually, the foil decoiler expanding range is from 420 to 520mm, which is suitable for the conductor foil with inner diameter 500mm. The control system is based on PLC.





Main Components of copper foil winding machine BRJ1400-2



1. Main frame, iron welded frame is very strong and stable

2. Winding unit, with 22kw motor, providing high torque

3. Foil decoiler, two foil decoiler suitable for conductor foil with inner diameter 500mm

4. Insulation decoiler, two insulation decoiler for placing insulation paer with ID 76mm OD 400mm

5. End-filling strip feeder, eight holder for end insulation filler

6. Cleaning system, two sets

7. Cutting system, one set

8. Foil deburring system, two sets.





Technical Parameters of copper foil winding machine BRJ1400-2



Typical standard specifications of copper foil winding machine BRJ1400-2 are shown below, however, the copper foil winding machine can also be manufactured as requested.



Max. Foil Width: 1,400mm
Max. Finished Coil OD.: 1,000mm
Finished Coil Shape: oval, round and rectangular,etc.
Conductor Foil Material: Copper or Aluminum
Conductor Material OD.: Ø1,000mm
Conductor Material ID.: Ø500mm
Foil Decoiler Number: 2 pcs
Foil Decoiler Diameter: adjustable range Ø400 ~ 520mm
Max. Coil Weight: 2,000KG
Welding Mode: TIG
Cutting Mode: Rolling shear
Insulation Decoiler Number: 2 pcs
End-filling Strip Feeder: 8 pcs
Edge Alignment System: Photoelectric sensing
Rectification Precision: ±0.5mm
Electronic Control System: PLC
User Interface: 10inch (254mm) touch screen
Counting Turns Range: 0 ~ 9999.9
Total Weight: 8000Kg
Dimension(L x W x H): 5800 x 2850 x 2500mm

Automatic Copper Foil Winding Machine Making Dry Type Low Voltage Transformer 0

Fig 1: Copper foil winding machine BRJ1600-2's front view



Automatic Copper Foil Winding Machine Making Dry Type Low Voltage Transformer 1

Fig 2: Copper foil winding machine BRJ1600-2's insulation decoiler



Automatic Copper Foil Winding Machine Making Dry Type Low Voltage Transformer 2Automatic Copper Foil Winding Machine Making Dry Type Low Voltage Transformer 3Automatic Copper Foil Winding Machine Making Dry Type Low Voltage Transformer 4Automatic Copper Foil Winding Machine Making Dry Type Low Voltage Transformer 5Automatic Copper Foil Winding Machine Making Dry Type Low Voltage Transformer 6Automatic Copper Foil Winding Machine Making Dry Type Low Voltage Transformer 7Automatic Copper Foil Winding Machine Making Dry Type Low Voltage Transformer 8Automatic Copper Foil Winding Machine Making Dry Type Low Voltage Transformer 9
