Home ProductsCopper Foil Winding Machine

Low Voltage Transformer Winder Machine Copper Foil Heavy Duty

Low Voltage Transformer Winder Machine Copper Foil Heavy Duty

Low Voltage Transformer Winder Machine Copper Foil Heavy Duty
Low Voltage Transformer Winder Machine Copper Foil Heavy Duty

Large Image :  Low Voltage Transformer Winder Machine Copper Foil Heavy Duty Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: BRJ1600-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Copper Foil Winding Machine Application: Winding Foil Coil
Conductor Foil: Cu / Al Strip Foil Decoiler: 2 Sets
Motor: 30kw Rotating Speed: 16 Rpm
Color: As Requested Warranty: 12 Months
High Light:

Low Voltage Transformer Winding Machine

,

Heavy Duty Foil Strip Winder

,

Low Voltage Transformer Winder Machine

Heavy Duty Foil Strip Winder Low Voltage Transformer Copper Foil Winding Machine





Introduction of copper foil winding machine BRJ1600-2



Transformer copper foil winding machine BRJ1600-2 is mainly used for winding cast resin or air cooled transformer’s coil and the foil conductor can be copper or aluminum strip. The kind of copper foil winding machine, i.e. Machine à enrouler les feuilles d'aluminium, can wind one or two layers of foil conductor and one or two layers of insulation material (such as paper or similar material). The copper foil winding machine is provided with TIG welding unit, including winding machine, cooler, jig plat and so on, to weld bus bar with foil together. Photoelectric sensors are adopted in the copper foil winding machine to correct the position of foil when the foil is wound. Control system of the copper foil winding machine is based on PLC. With a touch screen, it is very easy to operate the copper foil winding machine.





Features of copper foil winding machine BRJ1600-2

  • Slow starting
  • Running smooth
  • High automation
  • Full function
  • Big power
  • Neat foil edge
  • Tight winding
  • Easy operation



Main components of copper foil winding machine BRJ1600-2

  • Main frame, strong structure
  • Winding unit, 30kw motor driving
  • Insulation decoiler, with high tension
  • Cleaning system, pneumatic driving
  • Cutting system, pneumatic driving
  • Foil deburring system
  • Edge alignment system, photoelectric sensing
  • Automatic welding unit, TIG
  • Electronic control system
  • Pneumatic system



Technical Parameters of copper foil winding machine BRJ1600-2



Typical standard specifications of copper foil winding machine BRJ1600-2 are shown below, however, the copper foil winding machine can also be manufactured as requested.



Max. Foil Width: 1,600mm
Max. Finished Coil OD.: 1,000mm
Finished Coil Shape: oval, round and rectangular,etc.
Conductor Foil Material: Copper or Aluminum
Conductor Material OD.: Ø1,000mm
Conductor Material ID.: Ø500mm
Foil Decoiler Number: 2 pcs
Foil Decoiler Diameter: adjustable range Ø400 ~ 520mm
Max. Coil Weight: 2,000KG
Welding Mode: TIG
Cutting Mode: Rolling shear
Insulation Decoiler Number: 2 pcs
End-filling Strip Feeder: 8 pcs
Edge Alignment System: Photoelectric sensing
Rectification Precision: ±0.5mm
Electronic Control System: PLC
User Interface: 10inch (254mm) touch screen
Counting Turns Range: 0 ~ 9999.9
Total Weight: 9000Kg
Dimension(L x W x H): 5800 x 3050 x 2500mm

Low Voltage Transformer Winder Machine Copper Foil Heavy Duty 0

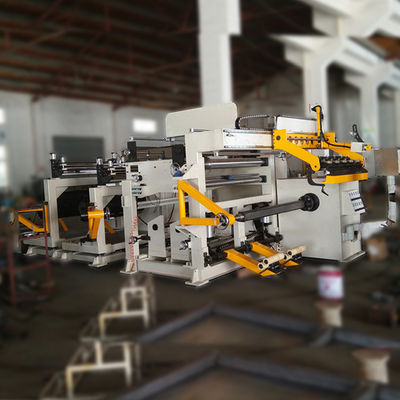

Fig 1: Copper foil winding machine BRJ1600-2's front view



Low Voltage Transformer Winder Machine Copper Foil Heavy Duty 1

Fig 2: Copper foil winding machine BRJ1600-2's TIG welding unit



Low Voltage Transformer Winder Machine Copper Foil Heavy Duty 2Low Voltage Transformer Winder Machine Copper Foil Heavy Duty 3Low Voltage Transformer Winder Machine Copper Foil Heavy Duty 4Low Voltage Transformer Winder Machine Copper Foil Heavy Duty 5Low Voltage Transformer Winder Machine Copper Foil Heavy Duty 6Low Voltage Transformer Winder Machine Copper Foil Heavy Duty 7Low Voltage Transformer Winder Machine Copper Foil Heavy Duty 8Low Voltage Transformer Winder Machine Copper Foil Heavy Duty 9
