Product Details:
Payment & Shipping Terms:
|
| Name: | Transformer Coil Winding Machine | Function: | Winding Wire Coil |
|---|---|---|---|
| Center Height: | 1000mm | Shaft Size: | 40x40x1500mm |
| Tailstock: | Live Centre | Color: | As Requested |
| Counter: | Digital | Rotating Speed: | 0 ~ 80rpm |
| High Light: | Semi Automatic Transformer Coil Winding Machine,Low Voltage Transformer Coil Winding Machine,Smooth Running Transformer Winding Machine |
||
Semi Automatic High Voltage And Low Voltage Transformer Coil Winding Machine
Description of transformer coil winding machine GDY-2T
Semi automatic transformer coil winding machine GDY-2T is a simple and practical transformer coil winding machine, which can wind copper wire and aluminium wire. The finished coil can be used as high voltage transformer coils or low voltage transformer coils. The transformer coil winding machine is provided with a strong steel frame, tailstock, foot pedal, counter, winding motor, electrical cabinet, and so on.
Main features of transformer coil winding machine GDY-2T
Main parameters of transformer coil winding machine GDY-2T
Typical standard specifications of coil winding machine GDY-2T are shown below, however, the transformer coil winding machine can also be manufactured as requested.
| Shaft Height From Floor: | 1000mm |
| Distance Between Ends: | 1500mm |
| Winding Speed: | 0 ~ 80rpm |
| Speed Gear: | 2 pcs |
| Max. Winding Length: | 1200mm |
| Counting Range: | 0 ~ 9999.9 |
| Max. Loading Capacity: | 2000KG |
| Motor Power: | 5.5KW |
| Colour: | optional |
| Machine Dimension(L*W*H): | 2800 x 700 x 1400mm |

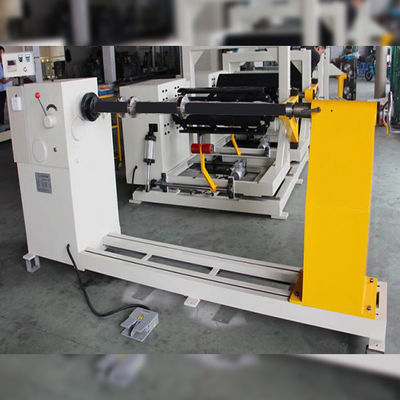

Fig 1: Transformer coil winding machine GDY-2T's full view
Fig 2: Transformer coil winding machine GDY-2T's control board
