| Product Name: | Transformer Foil Winding Machine | Foil Width: | 300mm |
|---|---|---|---|
| Welding: | Cold Pressure Welding | Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Al Foil Thickness: | 0.3 ~.0mm | Winding Speed: | 0 ~ 35 Rpm |
| Winding Power: | 5.5kw | Color: | Optional |
| High Light: | Cold Welding Transformer Foil Winding Machine,Cast Resin Foil Winding Machine Transformer,PLC Controlled Transformer Foil Winding Machine |
||
Cold Welding Cast Resin Transformer Foil Winding Machine Making Copper Foil Coil
Description of transformer foil winding machine BRJ300-2
Automatic cast resin transformer foil winding machine BRJ300-2 is a special equipment for winding transformer foil coils and other similar products. The transformer foil winding machine can be used to wind both copper foil and aluminium foil with max width 300mm. One or two layers of foil and one or two layers of insulation paper can be handled by this kind of transformer foil winding machine. The foil winding machine adopts the control system based on PLC, which can make the machine run automatically as per the parameters input. The transformer foil winding machine features slow staring, smooth running, high automation, full function, etc. With a touch screen, this kind of transformer foil winding machine can be operated easily.
Quick details of transformer foil winding machine BRJ300-2
Technical parameters of transformer foil winding machine BRJ300-2
Typical standard specifications of BRJ300-2 are shown below, however, the foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 300mm |
| Coil Shape: | Round, Oval and Rectangle etc. |
| Conductor Foil Material: | Copper or aluminum |
| Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Al Foil Thickness: | 0.3 ~ 3.0mm |
| Foil Material ID.: | Φ500mm |
| Maximum Foil Material OD.: | Φ1000mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 350mm |
| Foil Decoiler Expanding Range: | Φ420 ~ Φ520mm |
| Maximum Coil Weight: | 750kg |
| Rectifying Mode: | Photoelectric sensing |
| Cleaning Unit: | pneumatic |
| Insulation Paper Decoiler Number: | 2 sets |
| Maximum Insulation Paper Coil OD.: | Φ400mm |
| Insulation Paper Coil ID.: | Φ76mm |
| Insulation Decoiler Width: | 350mm |
| Winding Speed: | 0 ~ 35 RPM |
| Winding Power: | 5.5kw |
| Cold Welding Device: | 1 set |
| Positioning Device: | 1set |
| Grinding Device: | 1 set |
| Cold Welding Mould: | 6 sets |
| Control system: | PLC |
| Counting Range: | 0 - 9999.9 |

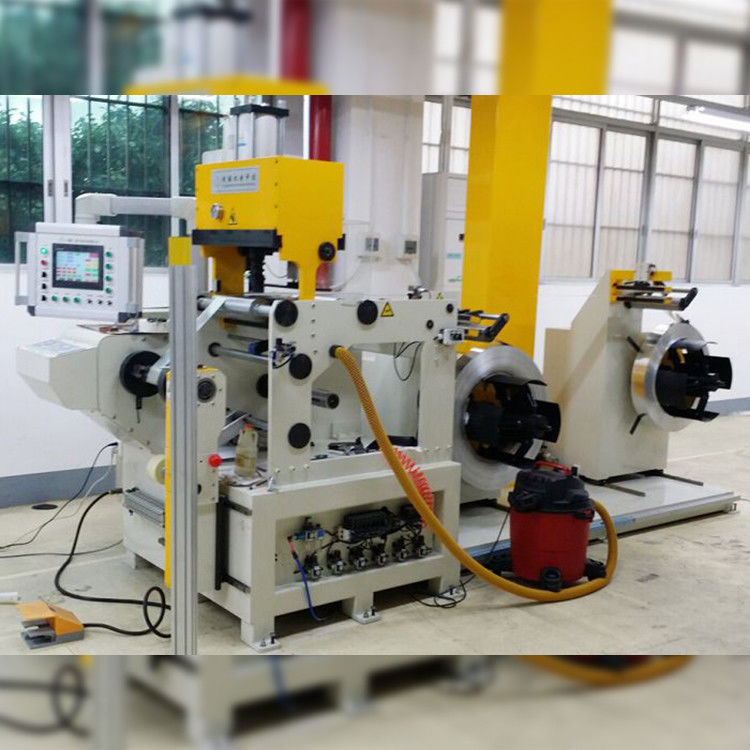

Fig 1: Transformer foil winding machine BRJ300-2's full view
Fig 2: Transformer foil winding machine BRJ300-2's welding effect
