Semi Automatic Transformer Coil Winding Machine Heavy Duty Oil Type

Semi Automatic Transformer Coil Winding Machine Heavy Duty Oil Type

Semi Automatic Transformer Coil Winding Machine Heavy Duty Oil Type
Semi Automatic Transformer Coil Winding Machine Heavy Duty Oil Type

Large Image :  Semi Automatic Transformer Coil Winding Machine Heavy Duty Oil Type Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: GDY-3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Coil Winding Machine Function: Winding Wire Coil
Shaft Size: 50x50mm Shaft Length: 2000mm
Rotating Speed: 40rpm Maximum Motor Power: 7.5kw
Color: As Requested Warranty: 12 Months
High Light:

Transformer Coil Winder Oil Type

,

Transformer Coil Winding Machine Oil Type

,

Transformer Coil Winder Semi Automatic

Heavy Duty Semi Automatic Wire Winder Oil Type Transformer Coil Winding Machine





Description of transformer coil winding machine GDY-3T



Semi automatic transformer coil winding machine GDY-3T is one kind of simple and easy to use winding machine for winding copper or aluminium wires. The kind of transformer coil winding machine is mainly used to wind oil type transformer coils or other similar products. With 7.5kw motor, the transformer coil winding machine is with big torque to drive the winding shaft and wind big coils. After setting the number of turns and press the foot pedal, the transformer coil winding machine can wind the wire and stop winding after finishing winding the number of turns preset. The transformer coil winding machine features slow starting, big pulling force and easy to operate etc.





Main components of transformer coil winding machine GDY-3T

  • Main frame
  • Square shaft
  • Split tailstock
  • Foot pedal
  • Counter
  • Control board



Main parameters of transformer coil winding machine GDY-3T



Typical standard specifications of transformer coil winding machine GDY-3T are shown below, however, the coil winding machine can also be manufactured as requested.



Central Height: 1000mm
Distance Between Ends: 2000mm
Square Shaft Size: 50x50x2000mm
Winding Speed: 0 ~ 40rpm
Maximum Transverse Length: 1800mm
Counting Range: 0 ~ 9999.9
Maximum Loading Capacity: 3000KG
Motor Power: 7.5KW
Colour: Optional
Machine Dimension(LxWxH): 3600x900x1400mm

Semi Automatic Transformer Coil Winding Machine Heavy Duty Oil Type 0

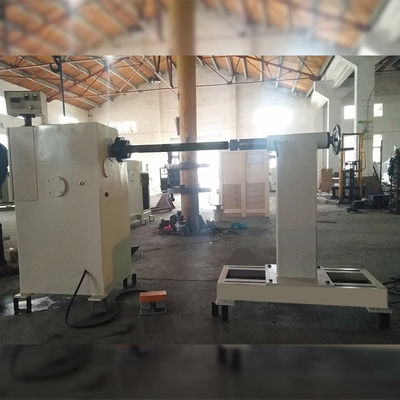

Fig 1: Transformer coil winding machine GDY-3T's full view



Semi Automatic Transformer Coil Winding Machine Heavy Duty Oil Type 1

Fig 2: Transformer coil winding machine GDY-3T's control panel



Semi Automatic Transformer Coil Winding Machine Heavy Duty Oil Type 2Semi Automatic Transformer Coil Winding Machine Heavy Duty Oil Type 3Semi Automatic Transformer Coil Winding Machine Heavy Duty Oil Type 4

Semi Automatic Transformer Coil Winding Machine Heavy Duty Oil Type 5Semi Automatic Transformer Coil Winding Machine Heavy Duty Oil Type 6Semi Automatic Transformer Coil Winding Machine Heavy Duty Oil Type 7

Semi Automatic Transformer Coil Winding Machine Heavy Duty Oil Type 8Semi Automatic Transformer Coil Winding Machine Heavy Duty Oil Type 9Semi Automatic Transformer Coil Winding Machine Heavy Duty Oil Type 10
