Copper Wire Automatic Transformer Coil Winding Machine Horizontal

Copper Wire Automatic Transformer Coil Winding Machine Horizontal

Copper Wire Automatic Transformer Coil Winding Machine Horizontal
Copper Wire Automatic Transformer Coil Winding Machine Horizontal

Large Image :  Copper Wire Automatic Transformer Coil Winding Machine Horizontal Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZPX1400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Coil Winding Machine Usage: Winding Wire Coil
Round Wire: 0.3 ~ 5.0mm Flat Wire: 5x12mm Max.
Wire Type: Copper Or Aluminium Wire Color: As Requested
Winding Speed: 90 Rpm Warranty: 1 Year
High Light:

90rpm Automatic Transformer Coil Winding Machine

,

Horizontal Transformer Coil Winder

,

90rpm Transformer Coil Winder

Horizontal Copper Wire Winder Automatic Transformer Coil Winding Machine



Description of transformer coil winding machine ZPX1400



Transformer coil winding machine ZPX1400 is a professional winding equipment for winding different specifications of transformer coils and other similar products. The transformer coil winding machine adopts automatic wire laying technology, which guarantees to wind the wire precisely. The transformer coil winding machine is also provided with a servo motor to drive the wire guide. One 7.5kw motor provides a big torque for the coil winding machine to wind different coils. With a potentiometer on the board, the winding speed of the transformer coil winding machine can be adjusted steplessly. The rotating direction of the winding shaft can be switched through the foot pedal. One touch screen is adopted to provide a user friendly interface to input all the parameters. With PLC control system, it is very easy to operate the transformer coil winding machine.



Main features of transformer coil winding machine ZPX1400

  • Slow starting
  • Smooth running
  • Full function
  • High automation
  • Easy operation
  • Strong pulling force



Main components of transformer coil winding machine ZPX1400



1. Main frame

2. Winding unit

3. Automatic wire laying unit

4. Insulation decoiler

5. Electronic control system

6. Pneumatic system





Technical Parameters of transformer coil winding machine ZPX1400



Typical standard specifications of coil winding machine ZPX1400 are shown below, however, the coil winding machine can also be manufactured as requested.



Center Height: 900mm
Shaft Length: 1700mm
Transverse Width: 1400mm
Main Motor Power: 7.5Kw
Winding Speed: 0 ~ 90 rpm
Speed Regulation: Variable frequency and stepless speed regulation
Max. Flat Wire Size: 5X12mm
Round Wire Diameter: Φ0.3 ~ Φ5.0mm
Max. Rotating OD.: 1200mm
Max. Loading Capacity: 700kg
Spread Pitch: Min. 0.01mm
Counting Mode: 5-digit counting
Max. Numbers of Turns Preset: 9999.9
Counting Turn Range: 0 ~ 9999.9

Copper Wire Automatic Transformer Coil Winding Machine Horizontal 0
Fig 1: Transformer coil winding machine ZPX1400's front view

Copper Wire Automatic Transformer Coil Winding Machine Horizontal 1

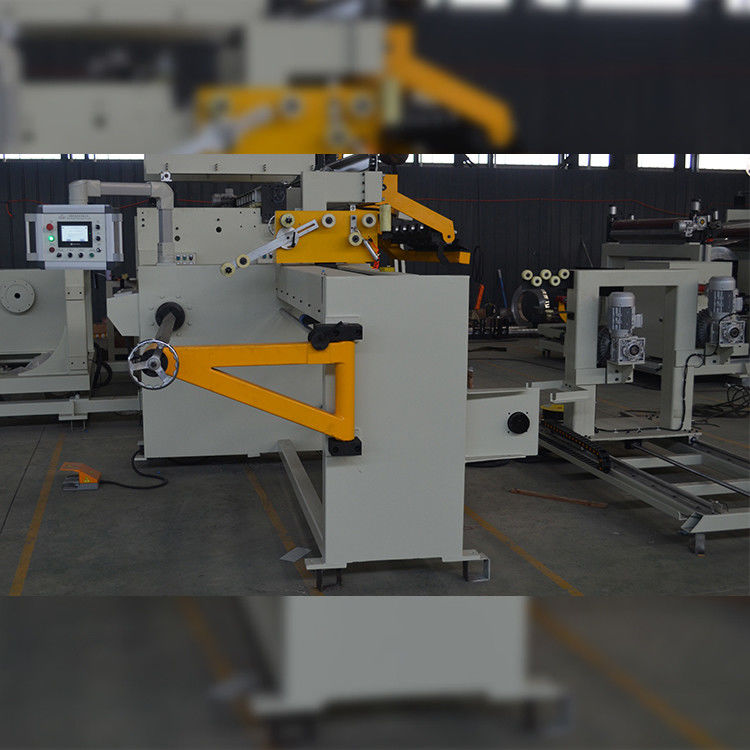

Fig 2: Transformer coil winding machine ZPX1400's triangle support



Copper Wire Automatic Transformer Coil Winding Machine Horizontal 2Copper Wire Automatic Transformer Coil Winding Machine Horizontal 3
Copper Wire Automatic Transformer Coil Winding Machine Horizontal 4Copper Wire Automatic Transformer Coil Winding Machine Horizontal 5Copper Wire Automatic Transformer Coil Winding Machine Horizontal 6
Copper Wire Automatic Transformer Coil Winding Machine Horizontal 7
Copper Wire Automatic Transformer Coil Winding Machine Horizontal 8
Copper Wire Automatic Transformer Coil Winding Machine Horizontal 9Copper Wire Automatic Transformer Coil Winding Machine Horizontal 10Copper Wire Automatic Transformer Coil Winding Machine Horizontal 11
