Flat Type Electric Automatic Coil Winding Machine PLC Controlled

Flat Type Electric Automatic Coil Winding Machine PLC Controlled

Flat Type Electric Automatic Coil Winding Machine PLC Controlled
Flat Type Electric Automatic Coil Winding Machine PLC Controlled

Large Image :  Flat Type Electric Automatic Coil Winding Machine PLC Controlled Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZPX600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Automatic Coil Winding Machine Usage: Making Wire Coil
Motor Power: 4kw Winding Speed: 0 ~ 200rpm
Conductor: Cu Wire Or Al Wire Wire Type: Flat Or Round Wire
Color: As Request Warranty: 12 Months
High Light:

Automatic Coil Winding Machine PLC Controlled

,

PLC Control Electric Wire Winder

,

Flat Type Automatic Coil Winding Machine

Factory Price Electric Wire Winder Automatic Coil Winding Machine Making Wire Coil





Introduction of automatic coil winding machine ZPX600



Automatic coil winding machine ZPX600 is one kind of professional wire winder, which is mainly used wind transformer coils and other similar products. The automatic coil winding machine can not only wind round wire but also wind flat wire. With a touch screen and PLC control system, the automatic coil winding machine can wind different size of coil automatically after inputting corresponding parameters through the touch screen. The maximum winding width of the automatic coil winding machine is 600mm. The winding speed of the automatic coil winding machine is 200rpm. The automatic coil winding machine features easy operation, high automation and so on.





Main features of automatic coil winding machine ZPX600

  • slow starting
  • smooth running
  • strong pulling force
  • high reliability
  • high accuracy
  • full function



Main parameters of automatic coil winding machine ZPX600



The typical stand specifications of automatic coil winding machine ZPX600 is as following, however, the coil winding machine can also be manufactured as requested.

Center height: 900mm
Square Shaft Size: 40x40x900mm
Max Winding Width: 600mm
Servo Motor Power: 0.75kw
Winding Speed: 0 ~ 200 rpm
Speed Regulation: stepless speed regulation
Max. Flat Wire Size: 5X12mm
Round Wire: Ø0.3mm ~ Ø5.0mm
Max Finished Coil OD.: Ø600mm
Max Capacity: 600kg
Automatic Wire Laying Function: Min. spread pitch 0.01mm
Counter: 5-digit counting
Max Preset Turns: 9999.9
Counting Range: 0 ~ 9999.9

Flat Type Electric Automatic Coil Winding Machine PLC Controlled 0

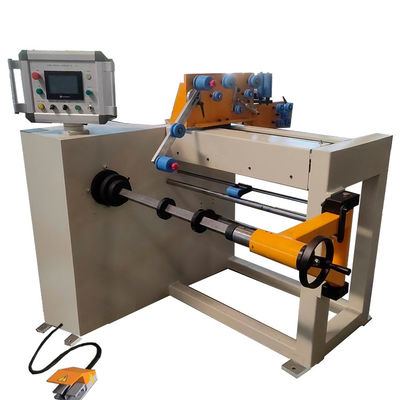

Fig 1: Automatic coil winding machine ZPX600's front view



Flat Type Electric Automatic Coil Winding Machine PLC Controlled 1

Fig 2: Automatic coil winding machine ZPX600's wire guide



Flat Type Electric Automatic Coil Winding Machine PLC Controlled 2Flat Type Electric Automatic Coil Winding Machine PLC Controlled 3Flat Type Electric Automatic Coil Winding Machine PLC Controlled 4Flat Type Electric Automatic Coil Winding Machine PLC Controlled 5Flat Type Electric Automatic Coil Winding Machine PLC Controlled 6Flat Type Electric Automatic Coil Winding Machine PLC Controlled 7Flat Type Electric Automatic Coil Winding Machine PLC Controlled 8Flat Type Electric Automatic Coil Winding Machine PLC Controlled 9Flat Type Electric Automatic Coil Winding Machine PLC Controlled 10
