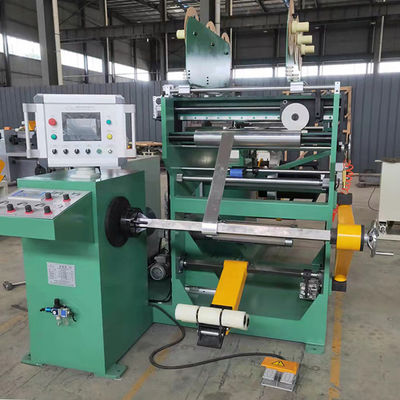

TIG Welding Copper Transformer Foil Winding Machine Low Voltage

TIG Welding Copper Transformer Foil Winding Machine Low Voltage

TIG Welding Copper Transformer Foil Winding Machine Low Voltage
TIG Welding Copper Transformer Foil Winding Machine Low Voltage
video play

Large Image :  TIG Welding Copper Transformer Foil Winding Machine Low Voltage Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ600-2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Foil Winding Machine Max. Foil Width: 600mm
Foil Decoiler: 2 Pcs Winding Speed: 0 ~ 26 Rpm
Color: As Requested Warranty: 12 Months
Insulation Decoiler: 2 Pcs Roll Shear: 1 Pc
High Light:

TIG Welding Transformer Foil Winding Machine

,

TIG Welding Copper Foil Winder

,

Copper Foil Winder Low Voltage

TIG Welding Copper Foil Winder Low Voltage Transformer Foil Winding Machine





Description of transformer foil winding machine BRJ600-2



Transformer foil winding machine BRJ600-2 is one kind of electric winder for winding transformer foil coil and other similar products. One 11kw motor is used for the transformer foil winding machine to wind one or two layers of copper or aluminium foil. The transformer foil winding machine can also handle one or two layers of insulation paper. The foil decoiler is used to place supply foil with maximum with 600mm. With touch screen and PLC control system, it is very easy to operate the transformer foil winding machine.





Quick details of transformer foil winding machine BRJ600-2

  • Maximum foil width 600mm
  • Foil material ID 500mm
  • Foil material OD 1000mm
  • Maximum winding speed 26rpm
  • Winding power 11kw
  • Automatic TIG welding unit
  • Two foil decoilers
  • One year warranty



Main parameters of transformer foil winding machine BRJ600-2



The standard specifications of transformer foil winding machine BRJ600-2 is as following. However, the transformer foil winding machine can also be manufactured as requested.

Foil Width: 150 ~ 600mm
Coil Shape: oval, circle and rectangular
Conductor Foil Material OD.: 1,000mm
Conductor Foil Material ID.: 500mm
Number of Conductor Decoiler: 2 pcs
Length of Conductor Decoiler: 650mm
Conductor Decoiler Expanding Range: Φ420 ~ 520mm
Winding Power: 11KW
Winding Shaft Size: 80×80×950 mm
Max. Winding Speed: 26 Rpm
Insulation Decoiler: 2 pcs
Insulation Material OD.: Φ400mm, maximum
Insulation Material ID.: Φ76mm
Insulation Paper Width: 650mm
End-fill Strip Feeder: 6 pcs
Edge Alignment System: Photoelectric sensing automatic rectifying deviation
Rectification Precision: ±0.5mm
User Interface: touch screen controller
Counting Turns Range: 0 ~ 9999.9



TIG Welding Copper Transformer Foil Winding Machine Low Voltage 0

TIG Welding Copper Transformer Foil Winding Machine Low Voltage 1

Fig 1: Transformer foil winding machine BRJ600-2's front view



TIG Welding Copper Transformer Foil Winding Machine Low Voltage 2

Fig 2 :Transformer foil winding machine BRJ600-2

TIG Welding Copper Transformer Foil Winding Machine Low Voltage 3TIG Welding Copper Transformer Foil Winding Machine Low Voltage 4TIG Welding Copper Transformer Foil Winding Machine Low Voltage 5TIG Welding Copper Transformer Foil Winding Machine Low Voltage 6TIG Welding Copper Transformer Foil Winding Machine Low Voltage 7

TIG Welding Copper Transformer Foil Winding Machine Low Voltage 8TIG Welding Copper Transformer Foil Winding Machine Low Voltage 9TIG Welding Copper Transformer Foil Winding Machine Low Voltage 10
