Description of transformer coil winding machine GDY-1T

Semi automatic transformer coil winding machine GDY-1T is one kind of simple and easy operated coil winding machine. This kind of transformer coil winding machine can wind copper or aluminium flat and round wire. The transformer coil winding machine is suitable for winding different sizes of copper or aluminum wire coils. The transformer coil winding machine is provided with two speed gears, low speed and high speed. When winding flat or big sized wire, using low speed gear to gain big torque with 0 ~ 50 rpm; when winding small sized wire, adopting high speed gear to gain high speed with maximum speed 200 rpm. The counter is used to count the number of turns when winding the wire.

Main components of transformer coil winding machine GDY-1T

1. Main frame, steel welded and very strong

2. Gearbox, gears and transmission shaft

3. Tailstock, it is liver center to support the winding shaft

4. Electric control cabinet, there is VFD and other components in the cabinet

5. Foot pedal, it can switch the rotating direction through the foot pedal

Main parameters of transformer coil winding machine GDY-1T

Typical standard specifications of transformer coil winding machine GDY-1T are shown below, however the coil winding machine can also be manufactured as requested.

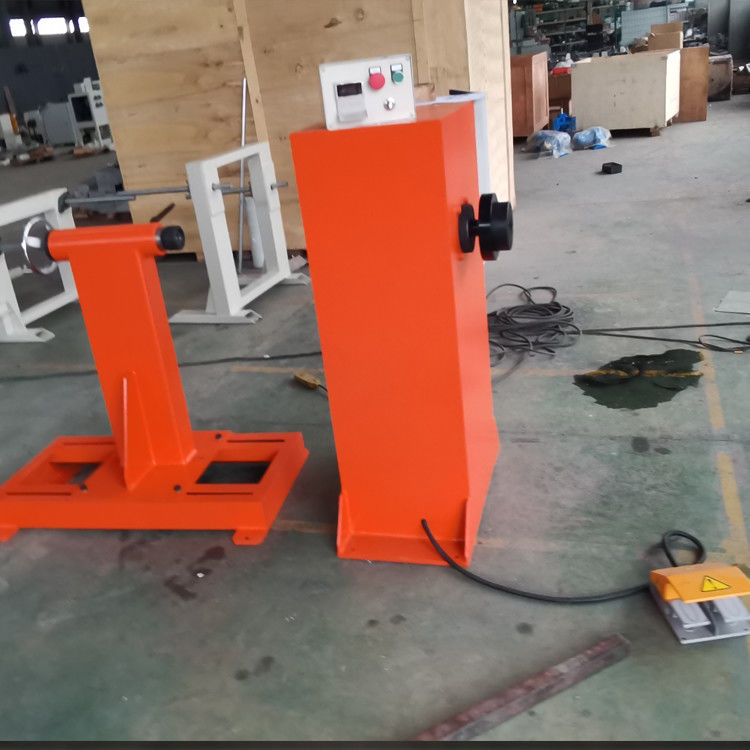

Fig 1: Transformer coil winding machine GDY-1T's full view

Fig 2: Transformer coil winding machine GDY-1T's tailstock
