Copper Wire Automatic Coil Winding Machine Making Transformer Coil

Copper Wire Automatic Coil Winding Machine Making Transformer Coil

Copper Wire Automatic Coil Winding Machine Making Transformer Coil
Copper Wire Automatic Coil Winding Machine Making Transformer Coil

Large Image :  Copper Wire Automatic Coil Winding Machine Making Transformer Coil Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZPX1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD5000 ~ 15000
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Automatic Coil Winding Machine Winding Width: 1000mm, Maximum
Winding Power: 5.5kw Winding Speed: 0 ~ 160rpm
Max. Load Capacity: 1000kg Wire Guide: 1 Pc
Color: As Requested Warranty: 12 Months
High Light:

PLC System Copper Wire Winder

,

Automatic Coil Winding Machine Smooth Running

,

Smooth Running Copper Wire Winder

Copper Wire Winder devanadera Automatic Coil Winding Machine Making Transformer Coil





Description of automatic coil winding machine ZPX1000



Automatic coil winding machine ZPX1000 is a professional wire winder, which can be used to wind both copper wire and aluminium wire for making transformer coil. The maximum winding width of the automatic coil winding machine is 1000mm. The wire guide is driven by a servo motor. The control system is based on PLC.





Features of automatic coil winding machine ZPX1000

  • slow starting
  • smooth running
  • different color
  • big power
  • Easy operation
  • 12 months warranty



Main parameters of automatic coil winding machine ZPX1000



The following is the standard specifications of the automatic coil winding machine ZPX1000, however, the automatic coil winding machine can also be manufactured as requested.



Winding Shaft Center Height: 900mm
Winding Shaft Size: 40x40x1300mm
Maximum Winding Width: 1000mm
Winding Power: 5.5kw
Rotating Speed: 0 ~ 160 rpm
Speed Regulation: stepless
Max. Flat Wire Size: 5mm x 12mm
Round Wire Diameter: Φ0.3mm ~ Φ5.0mm
Maximum wound Coil OD.: Φ800mm
Maximum Capacity: 800kg
Minimum Spread Pitch: 0.01mm
Counting Mode: 5-digit counting
Counting Turn Range: 0 ~ 9999.9



Copper Wire Automatic Coil Winding Machine Making Transformer Coil 0

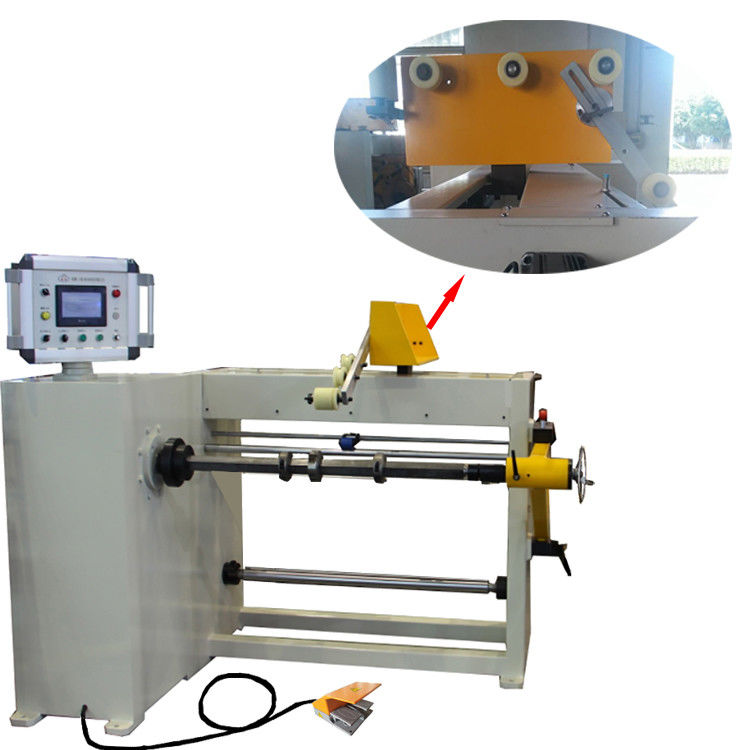

Fig 1: Automatic coil winding machine ZPX1000's front view



Copper Wire Automatic Coil Winding Machine Making Transformer Coil 1

Fig 2: Automatic coil winding machine ZPX1000's wire guide



Copper Wire Automatic Coil Winding Machine Making Transformer Coil 2Copper Wire Automatic Coil Winding Machine Making Transformer Coil 3



Copper Wire Automatic Coil Winding Machine Making Transformer Coil 4Copper Wire Automatic Coil Winding Machine Making Transformer Coil 5

Copper Wire Automatic Coil Winding Machine Making Transformer Coil 6Copper Wire Automatic Coil Winding Machine Making Transformer Coil 7

Copper Wire Automatic Coil Winding Machine Making Transformer Coil 8Copper Wire Automatic Coil Winding Machine Making Transformer Coil 9Copper Wire Automatic Coil Winding Machine Making Transformer Coil 10Copper Wire Automatic Coil Winding Machine Making Transformer Coil 11
