| Name: | Transformer Foil Winding Machine | Max. Foil Width: | 600mm |
|---|---|---|---|
| Foil Decoiler: | 1 Set | Winding Speed: | 0 ~ 26 Rpm |
| Color: | As Requested | Warranty: | 12 Months |
| Insulation Decoiler: | 2 Pcs | Roll Shear: | 1 Pc |
| High Light: | Transformer Foil Winding Machine Cast Resin,Single Layer Transformer Foil Winding Machine,One Layer Foil Winding Machine |
||
Cast Resin Low Voltage Transformer Foil Winding Machine For Single layer Foil
Description of transformer foil winding machine BRJ600
Transformer foil winding machine BRJ600 is professional winding equipment for winding conductor foil to make cast resin transformer coil. The foil winding machine can be used to wind both copper foil and aluminium foil with maximum width 600mm. After being input all parameters, the foil winding machine can wind the coil automatically. With TIG welding unit, the foil winding machine can wind foil with bus bar together. The foil winding machine features slow starting, high automation, easy operation and so on.
Quick details of transformer foil winding machine BRJ600
Main parameters of transformer foil winding machine BRJ600
The standard specifications of transformer foil winding machine BRJ600 is as following. However, the transformer foil winding machine can also be manufactured as requested.
| Foil Width: | 150 ~ 600mm |
| Coil Shape: | oval, circle and rectangular |
| Conductor Foil Material OD.: | 1,000mm |
| Conductor Foil Material ID.: | 500mm |
| Number of Conductor Decoiler: | 1 pc |
| Length of Conductor Decoiler: | 650mm |
| Conductor Decoiler Expanding Range: | Φ420 ~ 520mm |
| Winding Power: | 7.5KW |
| Winding Shaft Size: | 80×80×950 mm |
| Max. Winding Speed: | 26 Rpm |
| Insulation Decoiler: | 2 pcs |
| Insulation Material OD.: | Φ400mm, maximum |
| Insulation Material ID.: | Φ76mm |
| Insulation Paper Width: | 650mm |
| End-fill Strip Feeder: | 6 pcs |
| Edge Alignment System: | Photoelectric sensing automatic rectifying deviation |
| Rectification Precision: | ±0.5mm |
| User Interface: | touch screen controller |
| Counting Turns Range: | 0 ~ 9999.9 |

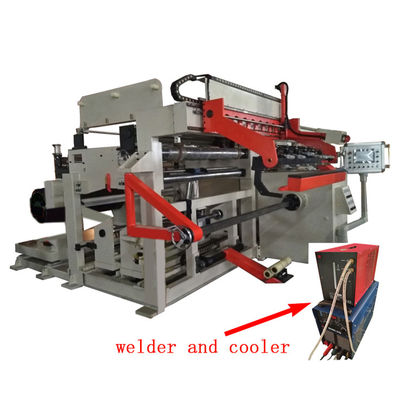

Fig 1: Transformer foil winding machine BRJ600-2's front view
Fig 2 :Transformer foil winding machine BRJ600-2
