Oil Type Transformer Making Equipment With Wire 7.5kw

Oil Type Transformer Making Equipment Transformer Coil Winding Machine With Wire

Description of transformer coil winding machine GDY-3T

Transformer coil winding machine GDY-3T is one kind of simple and easy operation wire winder. This kind of transformer coil winding machine can be used to wind copper or aluminium wires to make transformer coils or other similar products. The transformer coil winding machine is provided with one 7.5kw winding motor, which provides big torque to drive the winding shaft. With the counter, after setting the number of turns and press the foot pedal, the transformer coil winding machine can wind the wire and stop winding after finishing winding the number of turns preset. The transformer coil winding machine features slow starting, smoothing running, big pulling force and easy to operate etc.

Main components of transformer coil winding machine GDY-3T

• Main frame
• Square shaft
• Split tailstock
• Foot pedal
• Counter
• Control board

Main parameters of transformer coil winding machine GDY-3T

Typical standard specifications of transformer coil winding machine GDY-3T are shown below, however, the coil winding machine can also be manufactured as requested.

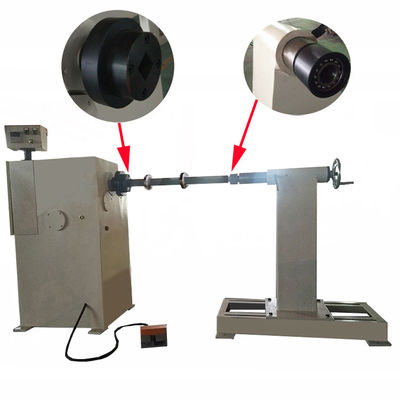

Fig 1: Transformer coil winding machine GDY-3T's full view

Fig 2: Transformer coil winding machine GDY-3T's control panel
