Single Layer Foil Winder Low Voltage Cast Resin Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ600
Transformer foil winding machine BRJ600 is for winding cast resin transformer coil. This kind of transformer foil winding machine can handle one layer of copper or aluminium foil with max width 600mm and one or two layers of insulation paper. The transformer foil winding machine is provided with foil decoiler, insulation decoiler, photoelectric senor, touch screen, PLC and so on. The transformer foil winding machine features slow starting, big torque, easy operation and so on.
Main components of transformer foil winding machine BRJ600
Main parameters of transformer foil winding machine BRJ600
The standard specification of transformer foil winding machine BRJ600 is as following, however, the foil winding machine can also be manufactured as requested.
| Finished Coil Shape: | oval, circle and rectangular |
| Maximum Conductor Foil Material OD.: | Ø1,000mm |
| Conductor Foil Material ID.: | Ø500mm |
| Conductor Decoiler Quantity: | 1 pc |
| Conductor Decoiler Length: | 650mm |
| Conductor Decoiler Expansive Range: | Ø480 ~ 520mm |
| Winding Power: | 7.5KW |
| Winding Shaft Size: | 80×80×950 mm |
| Max. Winding Speed: | 26 Rpm |
| Insulation Decoiler Quantity: | 2 pcs |
| Maximum Insulation Material OD.: | Ø400mm |
| Insulation Material ID.: | Ø76mm |
| Insulation Material Width: | 650mm |
| End-fill Strip Feeder: | 6 pcs |
| Edge Alignment System: | Photoelectric sensing |
| User Interface: | 10inch (254mm) touch screen |
| Counting Range: | 0 ~ 9999.9 |

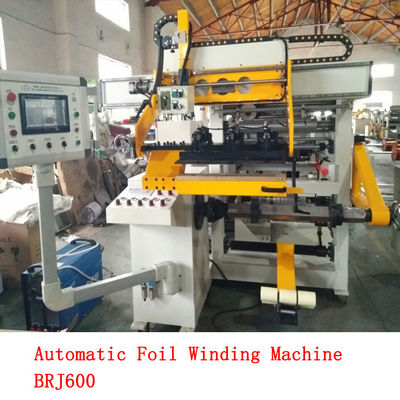

Fig 1: Transformer foil winding machine BRJ600-2's front view
Fig 2 :Transformer foil winding machine BRJ600-2
