Product Details:
Payment & Shipping Terms:
|
| Name: | Transformer Foil Winding Machine | Max. Foil Width: | 600mm |
|---|---|---|---|
| Foil Decoiler: | 2 Pcs | Rotating Speed: | 0 ~ 26 Rpm |
| Color: | As Requested | Warranty Period: | 12 Months |
| Insulation Decoiler: | 2 Pcs | Cutter: | 1 Pc |
| Highlight: | Automatic Copper Foil Winder,Auto Copper Foil Winder,Dry Type Transformer Coil Winding Machine |
||
Automatic Dry Type Transformer Making Equipment Copper Foil Winding Machine
Description of transformer foil winding machine BRJ600-2
Transformer foil winding machine BRJ600-2 is a special equipment for winding film strip to make dry type transformer coil. The transformer foil winding machine can be used to wind one or two layers of film strip with maximum width 600mm. TIG welding unit of the transformer foil winding machine is for welding foil and bus bar together. The transformer foil winding machine is provided with foil decoiler, insulation decoiler, PLC, touch screen, and so on. The transformer foil winding machine features slow staring, smooth running, easy operation, strong pulling force and so on.
Quick details of transformer foil winding machine BRJ600-2
Main parameters of transformer foil winding machine BRJ600-2
The standard specification of transformer foil winding machine BRJ600-2 is as following, however, the foil winding machine can also be manufactured as requested.
| Coil Shape: | oval, circle and rectangular |
| Maximum Foil Material OD.: | Ø1,000mm |
| Foil Material ID.: | Ø500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 650mm |
| Foil Decoiler Diameter Range: | 480 ~ 520mm |
| Winding Power: | 11KW |
| Winding Shaft Size: | 80×80×950 mm |
| Winding Speed: | 0 ~ 26 Rpm |
| Insulation Decoiler: | 2 pcs |
| Maximum Insulation Material OD.: | Ø400mm |
| Insulation Material ID.: | Ø76mm |
| Insulation Paper Width: | 650mm |
| End-fill Strip Feeder: | 6 pcs |
| Edge Alignment System: | Photoelectric sensing |
| User Interface: | 10inch (254mm) touch screen |
| Counting Range: | 0 ~ 9999.9 |

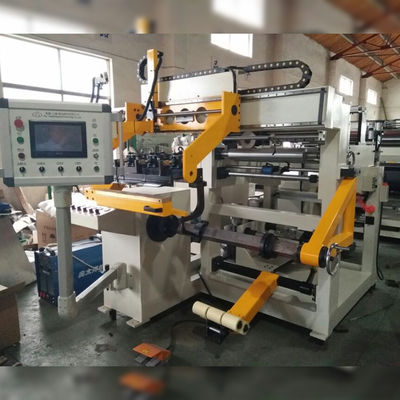

Fig 1: Transformer foil winding machine BRJ600-2's front view
Fig 2 :Transformer foil winding machine BRJ600-2
