HV And LV Transformer Semi Automatic Coil Winding Machine With Wire Conductor

HV And LV Transformer Semi Automatic Coil Winding Machine With Wire Conductor

HV And LV Transformer Semi Automatic Coil Winding Machine With Wire Conductor
HV And LV Transformer Semi Automatic Coil Winding Machine With Wire Conductor

Large Image :  HV And LV Transformer Semi Automatic Coil Winding Machine With Wire Conductor Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: GDY-1T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD2000 ~ 4000 per set
Packaging Details: seaworthy packing
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Coil Winding Machine Usage: Winding Wire Coil
Center Heigth: 1000mm Shaft Size: 40x40x1000mm
Tailstock: Movable Color: As Requested
Counter: Digital Winding Speed: 0 ~ 200rpm
High Light:

Transformer Coil Winder 200rpm

,

Coil Winder With Wire Conductor

,

200rpm Semi Automatic Coil Winding Machine

HV And LV Transformer Semi Automatic Coil Winding Machine With Wire Conductor





Description of transformer coil winding machine GDY-1T



Semi automatic transformer coil winding machine GDY-1T is professional winder for winding different sizes of copper or aluminum wire coils. These coils can be used in transformers and other similar products. The transformer coil winding machine is semi automatic and is provided with an digital counter for counting the number of turns and the total number of turns can be preset, which means the winding machine will stop after winding the number of turns preset. Moreover, even though there is a sudden power failure, the counting record and the parameters input can be saved. The winding speed of the transformer coil winding machine can be adjusted stepless through a potentiometer on the board. The rotating direction (forward/reverse) of the transformer coil winding machine can be switched through the foot pedal.





Quick details of transformer coil winding machine GDY-1T

  • Winding copper or aluminium wire
  • Winding width 1000mm
  • Maximum capacity 1000kg
  • Winding power 3kw
  • Winding shaft size 40x40x1200mm
  • Two speed gear



Specifications of transformer coil winding machine GDY-1T



Typical standard specifications of coil winding machine GDY-1T are shown below, however, the coil winding machine can also be manufactured as requested.



Center Height: 1000mm
Shaft Size: 40x40x1000mm
Flange Square Hole Size: 40x40mm
Winding Speed: 0 ~ 200rpm
Speed Gear: 2 pcs
Max. Winding Height: 1000mm
Counting Range: 0 ~ 9999.9
Max. Capacity: 1000KG
Power: 3KW
Total Weight: 500 kg
Dimension(L*W*H): 2800*700*1400mm



HV And LV Transformer Semi Automatic Coil Winding Machine With Wire Conductor 0

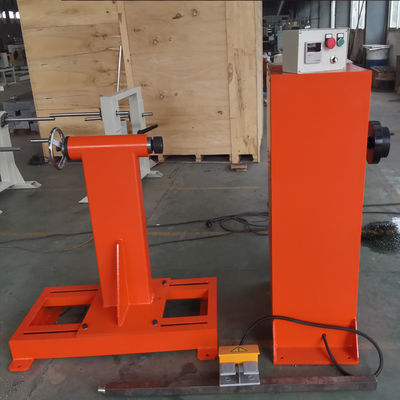

Fig 1: Transformer coil winding machine GDY-1T's full view



HV And LV Transformer Semi Automatic Coil Winding Machine With Wire Conductor 1

Fig 2: Transformer coil winding machine GDY-1T's tailstock



HV And LV Transformer Semi Automatic Coil Winding Machine With Wire Conductor 2

HV And LV Transformer Semi Automatic Coil Winding Machine With Wire Conductor 3HV And LV Transformer Semi Automatic Coil Winding Machine With Wire Conductor 4HV And LV Transformer Semi Automatic Coil Winding Machine With Wire Conductor 5HV And LV Transformer Semi Automatic Coil Winding Machine With Wire Conductor 6HV And LV Transformer Semi Automatic Coil Winding Machine With Wire Conductor 7HV And LV Transformer Semi Automatic Coil Winding Machine With Wire Conductor 8HV And LV Transformer Semi Automatic Coil Winding Machine With Wire Conductor 9
