| Product Name: | Automatic Coil Winding Machine | Max Winding Width: | 1000mm |
|---|---|---|---|
| Winding Motor: | 5.5kw | Winding Speed: | 0 ~ 160rpm |
| Max. Load Capacity: | 1000kg | Wire Guide: | 1 Pc |
| Color: | Optional | Warranty Period: | 12 Months |
| Highlight: | Copper Wire Winder Automatic,Copper Wire Automatic Coil Winding Machine,Transformer Coil Copper Wire Winder |
||
Copper Wire Winder Automatic Coil Winding Machine For Making Transformer Coil
Description of automatic coil winding machine ZPX1000
Automatic coil winding machine ZPX1000 is a professional winding equipment for winding winding transformer coils and other similar products. The automatic coil winding machine can wind both copper wire and aluminium wires. The maximum winding width of the automatic coil winding machine is 1000mm. The wire guide is driven by a servo motor. The control system is based on PLC. With a touch screen, it is very easy to operate the coil winding machine.
Features of automatic coil winding machine ZPX1000
Main parameters of automatic coil winding machine ZPX1000
The following is the standard specifications of the automatic coil winding machine ZPX1000, however, the automatic coil winding machine can also be manufactured as requested.
| Winding Shaft Center Height: | 900mm |
| Winding Shaft Size: | 40x40x1300mm |
| Maximum Winding Width: | 1000mm |
| Winding Power: | 5.5kw |
| Rotating Speed: | 0 ~ 160 rpm |
| Speed Regulation: | stepless |
| Max. Flat Wire Size: | 5mm x 12mm |
| Round Wire Diameter: | Φ0.3mm ~ Φ5.0mm |
| Maximum wound Coil OD.: | Φ800mm |
| Maximum Capacity: | 800kg |
| Minimum Spread Pitch: | 0.01mm |
| Counting Mode: | 5-digit counting |
| Counting Turn Range: | 0 ~ 9999.9 |

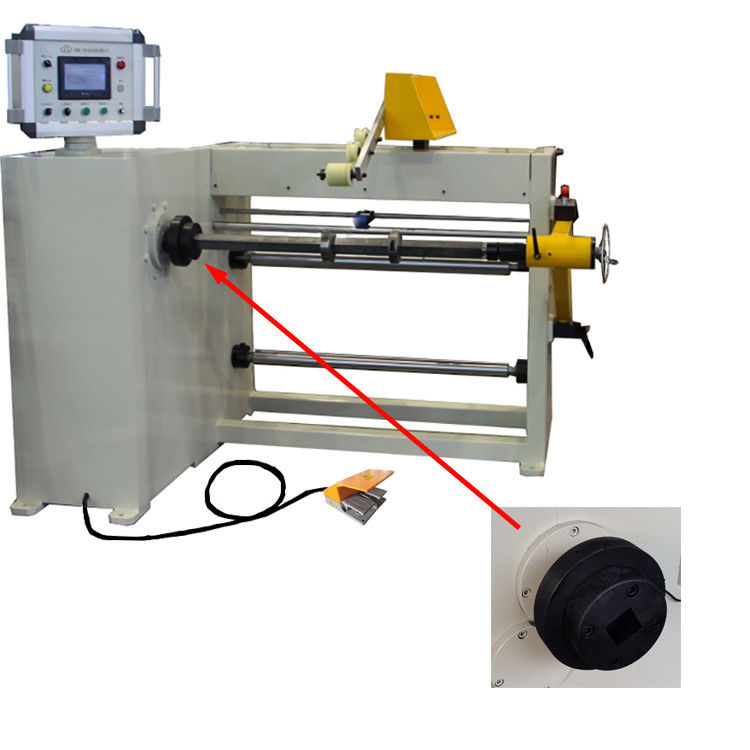

Fig 1: Automatic coil winding machine ZPX1000's front view
Fig 2: Automatic coil winding machine ZPX1000's wire guide
