Semi Auto Transformer Coil Winding Machine High Voltage And Low Voltage

Semi Auto Transformer Coil Winding Machine High Voltage And Low Voltage

Semi Auto Transformer Coil Winding Machine High Voltage And Low Voltage
Semi Auto Transformer Coil Winding Machine High Voltage And Low Voltage

Large Image :  Semi Auto Transformer Coil Winding Machine High Voltage And Low Voltage Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: GDY-2T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Coil Winding Machine Function: Winding Wire Coil
Center Height: 1000mm Shaft Size: 40x40x1500mm
Tailstock: Live Centre Color: As Requested
Counter: Digital Rotating Speed: 0 ~ 80rpm
High Light:

Semi Auto Transformer Winder

,

80rpm Transformer Winding Machine

,

80rpm Transformer Winder Machine

Semi Automatic Transformer Coil Winding Machine High Voltage And Low Voltage



Semi Automatic High And Low Voltage Oil Immersed Transformer Coil Winding Machine





Description of transformer coil winding machine GDY-2T



Semi automatic transformer coil winding machine GDY-2T is one kind of simple and practical transformer coil winding machines, which can be used to wind both copper wire and aluminium wire. The finished coil can server as high voltage transformer coils or low voltage transformer coils. The transformer coil winding machine is provided with tail stock, counter, and so on.





Main features of transformer coil winding machine GDY-2T



  • Slow starting
  • Smooth running
  • Easy operating
  • Big pulling force



Main parameters of transformer coil winding machine GDY-2T



Typical standard specifications of coil winding machine GDY-2T are shown below, however, the transformer coil winding machine can also be manufactured as requested.



Shaft Height From Floor: 1000mm
Distance Between Ends: 1500mm
Winding Speed: 0 ~ 80rpm
Speed Gear: 2 pcs
Max. Winding Length: 1200mm
Counting Range: 0 ~ 9999.9
Max. Loading Capacity: 2000KG
Motor Power: 5.5KW
Colour: optional
Machine Dimension(L*W*H): 2800*700*1400mm



Semi Auto Transformer Coil Winding Machine High Voltage And Low Voltage 0

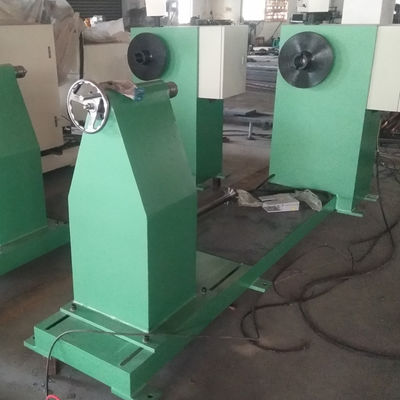

Fig 1: Transformer coil winding machine GDY-2T's full view



Semi Auto Transformer Coil Winding Machine High Voltage And Low Voltage 1

Fig 2: Transformer coil winding machine GDY-2T's control board



Semi Auto Transformer Coil Winding Machine High Voltage And Low Voltage 2

Semi Auto Transformer Coil Winding Machine High Voltage And Low Voltage 3Semi Auto Transformer Coil Winding Machine High Voltage And Low Voltage 4Semi Auto Transformer Coil Winding Machine High Voltage And Low Voltage 5Semi Auto Transformer Coil Winding Machine High Voltage And Low Voltage 6Semi Auto Transformer Coil Winding Machine High Voltage And Low Voltage 7Semi Auto Transformer Coil Winding Machine High Voltage And Low Voltage 8Semi Auto Transformer Coil Winding Machine High Voltage And Low Voltage 9Semi Auto Transformer Coil Winding Machine High Voltage And Low Voltage 10
