Semi Automatic Oil Immersed Transformer Coil Winding Machine With Counter

Semi Automatic Oil Immersed Transformer Coil Winding Machine With Counter

Semi Automatic Oil Immersed Transformer Coil Winding Machine With Counter
Semi Automatic Oil Immersed Transformer Coil Winding Machine With Counter

Large Image :  Semi Automatic Oil Immersed Transformer Coil Winding Machine With Counter Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: GDY-3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Coil Winding Machine Function: Winding Wire Coil
Shaft Size: 50x50mm Shaft Length: 2000mm
Motor Power: 7.5kw Operation: Semi Automatic
Color: As Requested Warranty: 12 Months
High Light:

Transformer Winder Oil Immersed

,

2000mm Transformer Coil Winding Machine

,

Transformer Coil Winder With Counter

Semi Automatic Oil Immersed Transformer Coil Winding Machine With Counter





Description of transformer coil winding machine GDY-3T



Transformer coil winding machine GDY-3T is one kind of semi automatic coil winding machines. This transformer making equipment can be used to wind copper wire or aluminium wire to make oil immersed transformer coils or other similar products. The transformer coil winding machine is provided with one 7.5kw winding motor to provide big torque to drive the winding shaft. One counter is also provided to count the number of turns when winding. The transformer coil winding machine is very easy to be operated, only need preset the number of turns and press the foot pedal, the transformer coil winding machine can wind the wire automatically and stop winding when finishing winding the number of turns preset. The transformer coil winding machine features slow starting, smoothing running, big pulling force and easy to operate etc.





Main components of transformer coil winding machine GDY-3T

  • Main frame
  • Square shaft
  • Split tailstock
  • Foot pedal
  • Counter
  • Control board



Main parameters of transformer coil winding machine GDY-3T



Typical standard specifications of transformer coil winding machine GDY-3T are shown below, however, the coil winding machine can also be manufactured as requested.



Central Height: 1000mm
Distance Between Ends: 2000mm
Square Shaft Size: 50x50x2000mm
Winding Speed: 0 ~ 40rpm
Maximum Transverse Length: 1800mm
Counting Range: 0 ~ 9999.9
Maximum Loading Capacity: 3000KG
Motor Power: 7.5KW
Colour: Optional
Machine Dimension(LxWxH): 3600x900x1400mm



Semi Automatic Oil Immersed Transformer Coil Winding Machine With Counter 0

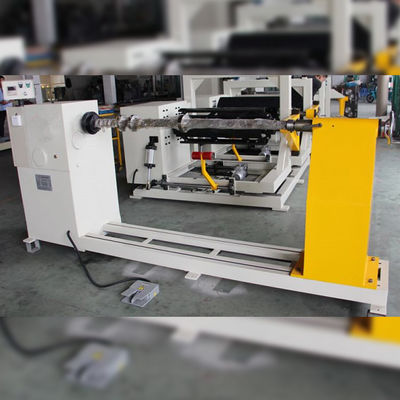

Fig 1: Transformer coil winding machine GDY-3T's full view



Semi Automatic Oil Immersed Transformer Coil Winding Machine With Counter 1

Fig 2: Transformer coil winding machine GDY-3T's control panel



Semi Automatic Oil Immersed Transformer Coil Winding Machine With Counter 2Semi Automatic Oil Immersed Transformer Coil Winding Machine With Counter 3Semi Automatic Oil Immersed Transformer Coil Winding Machine With Counter 4

Semi Automatic Oil Immersed Transformer Coil Winding Machine With Counter 5Semi Automatic Oil Immersed Transformer Coil Winding Machine With Counter 6Semi Automatic Oil Immersed Transformer Coil Winding Machine With Counter 7

Semi Automatic Oil Immersed Transformer Coil Winding Machine With Counter 8Semi Automatic Oil Immersed Transformer Coil Winding Machine With Counter 9Semi Automatic Oil Immersed Transformer Coil Winding Machine With Counter 10
