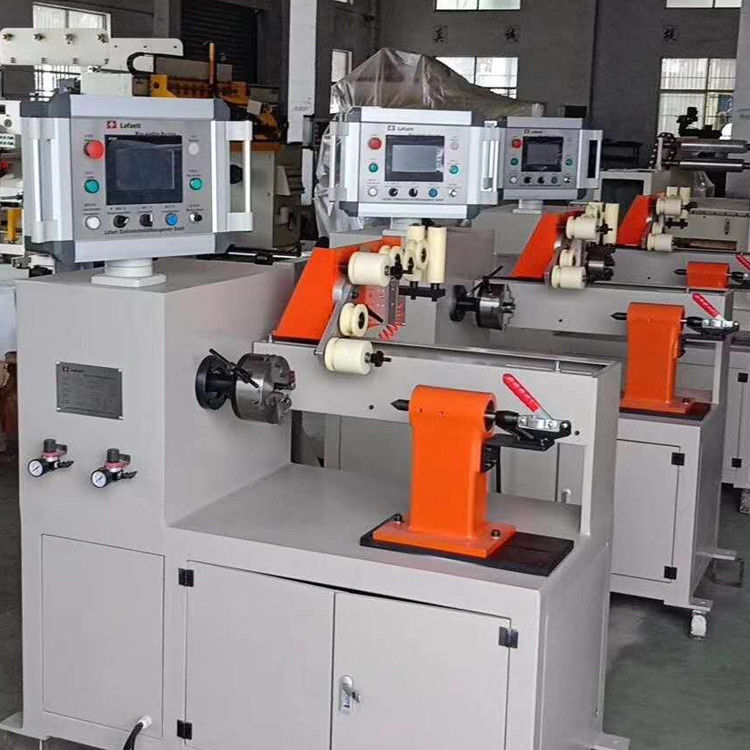

Automatic Oil Immersed Transformer Small Coil Winding Machine With Copper Wire

Automatic Oil Immersed Transformer Small Coil Winding Machine With Copper Wire

Automatic Oil Immersed Transformer Small Coil Winding Machine With Copper Wire
Automatic Oil Immersed Transformer Small Coil Winding Machine With Copper Wire

Large Image :  Automatic Oil Immersed Transformer Small Coil Winding Machine With Copper Wire Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZPX250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Automatic Coil Winding Machine Function: Winding Transformer Coil
Wire Material: Copper Or Aluminium Wire Type: Flat Or Round Wire
Transverse Length: 0 ~ 250mm Wire Guide: 1 Pc
Control Mode: PLC Warranty Period: 12 Months
High Light:

Oil Immersed Coil Winder

,

Transformer Small Coil Winding Machine

,

Coil Winding Machine With Copper Wire

Automatic Oil Immersed Transformer Small Coil Winding Machine With Copper Wire





Description of automatic coil winding machine ZPX250



Automatic coil winding machine ZPX250 is a small and medium coil winder machine, which can wind both copper flat or round wire and aluminium flat or round wire. The automatic coil winding machine can wind the coil with maximum height 250mm. The automatic coil winding machine is provided with main winding motor, wire guide, touch screen, a foot pedal and so on. The wire guide is driven by 750w servo motor, which guarantees the excellent start - stop actions. The touch screen is colored one, there is a user friendly interface and the parameters can be input through the touch screen. With PLC based on control system and HMI, the automatic coil winding machine can be operated easily.





Main features of automatic coil winding machine ZPX250

  • Slow starting
  • Smooth running
  • High automation
  • Full function
  • Easy operating



Technical parameters of automatic coil winding machine ZPX250



Typical standard specifications of automatic coil winding machine ZPX250 are shown below, however, the coil winding machine can also be manufactured as requested. .

Shaft Height from Floor: 900mm
Tailstock: Live center
Winding Motor Power: 2.2kw
Rotating Speed: 0 ~ 120 rpm
Speed Regulation: stepless speed regulation
Control System: PLC
Maximum Flat Wire: 2.0x8.0mm
Round Wire Diameter: Ø0.3-4.0mm
Max Finished Coil Height: 250mm
Max Finished Coil OD: Ø400mm
Automatic Wire Laying Function: Min. Spread Pitch: 0.01mm
Basic Function: 5-digit counting, turn number preset by segments, total turn number preset, reversible counting, and power off memory, etc.
Counting Turn Range: 0 ~ 9999.9



Automatic Oil Immersed Transformer Small Coil Winding Machine With Copper Wire 0

Fig 1: Automatic coil winding machine ZPX250's front view



Automatic Oil Immersed Transformer Small Coil Winding Machine With Copper Wire 1

Fig 2: Automatic coil winding machine ZPX250's wire guide



Automatic Oil Immersed Transformer Small Coil Winding Machine With Copper Wire 2

Automatic Oil Immersed Transformer Small Coil Winding Machine With Copper Wire 3Automatic Oil Immersed Transformer Small Coil Winding Machine With Copper Wire 4Automatic Oil Immersed Transformer Small Coil Winding Machine With Copper Wire 5Automatic Oil Immersed Transformer Small Coil Winding Machine With Copper Wire 6
