Split Tailstock 200rpm Transformer Winding Machine Semi Automatic

Split Tailstock 200rpm Transformer Winding Machine Semi Automatic

Split Tailstock 200rpm Transformer Winding Machine Semi Automatic
Split Tailstock 200rpm Transformer Winding Machine Semi Automatic

Large Image :  Split Tailstock 200rpm Transformer Winding Machine Semi Automatic Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: GDY-1T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD2000 ~ 4000 per set
Packaging Details: seaworthy packing
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Coil Winding Machine Usage: Winding Wire Coil
Center Heigth: 1000mm Shaft Size: 40x40x1200mm
Tailstock: Split Type Color: As Requested
Counter: Digital Type Rotating Speed: 0 ~ 200rpm
High Light:

200rpm transformer winding machine

,

split tailstock transformer winding machine

,

semi automatic transformer winder

Semi Automatic winding machine Wire Winder Transformer Coil Winding Machine





Description of transformer coil winding machine GDY-1T



Transformer coil winding machine GDY-1T is one kind of semi automatic wire winders. The transformer coil winding machine is for winding different specifications of coils and the coils can be used to make transformers and other similar products.

With the digital counter, the transformer coil winding machine can show the number of turns when winding. When reaching the total number of turns preset, the transformer coil winding machine will stop automatically. Even though there is a sudden power failure, the counting record and the parameters input can be saved. The winding speed of the transformer coil winding machine can be adjusted stepless through a potentiometer on the board. The rotating direction (forward/reverse) of the transformer coil winding machine can be switched through the foot pedal.





Quick details of transformer coil winding machine GDY-1T



  • Winding copper or aluminium wire
  • Winding width 1000mm
  • Maximum capacity 1000kg
  • Winding power 3kw
  • Winding shaft size 40x40x1200mm
  • Two speed gear



Specifications of transformer coil winding machine GDY-1T



Typical standard specifications of coil winding machine GDY-1T are shown below, however, the coil winding machine can also be manufactured as requested.



Center Height: 1000mm
Shaft Size: 40x40x1200mm
Flange Square Hole Size: 40x40mm
Winding Speed: 0 ~ 200rpm
Speed Gear: 2 pcs
Maximum Winding Winding: 1000mm
Counting Range: 0 ~ 9999.9
Maximum Capacity: 1000KG
Power: 3KW
Total Weight: 500 kg
Dimension(LxWxH): 2800x700x1400mm



Split Tailstock 200rpm Transformer Winding Machine Semi Automatic 0

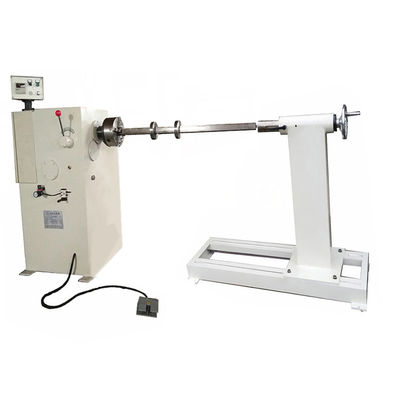

Fig 1: Transformer coil winding machine GDY-1T's full view



Split Tailstock 200rpm Transformer Winding Machine Semi Automatic 1

Fig 2: Transformer coil winding machine GDY-1T's tailstock



Split Tailstock 200rpm Transformer Winding Machine Semi Automatic 2

Split Tailstock 200rpm Transformer Winding Machine Semi Automatic 3Split Tailstock 200rpm Transformer Winding Machine Semi Automatic 4Split Tailstock 200rpm Transformer Winding Machine Semi Automatic 5Split Tailstock 200rpm Transformer Winding Machine Semi Automatic 6Split Tailstock 200rpm Transformer Winding Machine Semi Automatic 7Split Tailstock 200rpm Transformer Winding Machine Semi Automatic 8Split Tailstock 200rpm Transformer Winding Machine Semi Automatic 9
